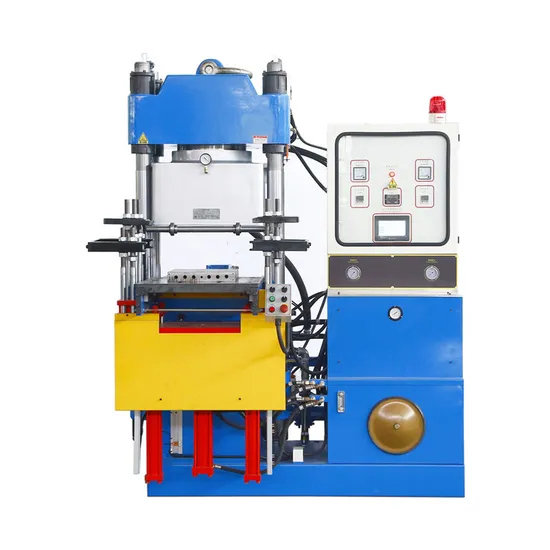

Hydraulic Silicone Rubber Injection Moulding Machine

Product Description

Hydraulic Silicone Rubber Injection Moulding Machine
Specifications
1.CE
2.automatic, handle
3.automatic in/out mold
4.reduce energy consumption
5.high speed open/close molds
Mechanical system:

1. Using the finite element analysis, design precision casting forming, high rigidity, long service life.

2. The deep hole processing, the hot plate drill by thickening and nitriding process, the use of high precision, even the temperature distribution.

3. Numerical control equipment, to ensure accurancy, precision design with key parts for processing.

4. High-end adjustment plane technology, highest can make fluctuation hot plate parallel degree of 0.02mm

Oil line system:

1. The oil line is integrated design concept, reduce oil route, modular inpact and noise.

2. The safe and energy-saving design, improve efficiency, reduce energy consumption.

3. Special design of high speed loop, and makes speed fast acting as smooth transition, and can make any speed adjustment

4. Indenpendent exhaust circuit design, make the exhaust of 100%.

5. Using high quality hydraulic components, stable and reliable.

description:
YJ Series Hydraulic Shaper is suitable for thermosetting plastics (bakelite),rubber, glass fibre, magnetic material, powder metallurgy and graphite washer etc. and cool load and unload as well as other lines.
Three kinds controls are available: manual, button and computer control.

The operators technique will not affect the quality of product produced by this machine. It suits for rubber articals, thermosetting plastics (backlite) etc as well as special products which have complicated process data (such as exhaust or many times air exhaust midway exhaust) and need high quality.
feature:
data setting: original pressure stop, air exhaust stop, sulfide 1, sulfide 2, original pressure exhaust and midway exhaust.
With manual and auto control functions.
Computer internal lock with power OFF memory.
Temperature control precision:≤±2°C
Two choices for pressure guage and pressure relay
main technical data:

Model	YJ-100 YJ-150	YJ-350	YJ-400	YJ-450	YJ-500	YJ-630	YJ-800	YJ-1000I	YJ-1000II	YJ-1500
Max.pressing force(KN)	100 150	350	400	450	500	630	800	1000	1000	1500
Operate table size(mm)	220×330 300×380	280×280	380*380	320×320	350*350/380*380	400*400/440*440	480*480	480*480	600×600	600×600
Work table dimension(mm)	160	200	200	200	200	200/250	300	300	300	450
Max.opening height(mm)	300	140	230	230	200/270	200/350	370	430	420	600
Motor power(kw)	1.5	1.5	1.5	1.5	1.5/2.2	4	4	4	5.5	5.5
