Flat Bed Automatic Label Die Cutting Machine / Die Punching Machine

Flat Bed Automatic Label Die Cutting Machine / Die Punching Machine

Product Description

Product Description
Flat Bed Automatic Label Die Cutting Machine / Die Punching Machine
Functional characteristics:
This machine is suitable for all kinds of roll material die cutting,It with independent unwinding machine and with conveyor belt,With automatic computer control and servo motor control, servo motor pulling and pushing material, more precise of unwinding,It with touch screen operation to set the die cutting datas ,and with hand operation switches also , easy operation,The soft rubber roller and polished aluminum guiding roller not scratch the materials.
Standard function:
Unwinding ------ air suction -------- die cutting (kiss cut )---- waste scrap rewind ---------- roll rewind or sheet cut
Optional functions:
1. Hot stamping
2. Punching
3. Laminating
4. Adding conveyor belt
5. Full-cut for die cutting
Scope applicable :
On a variety of electronic appliances special pads, silicone paste, Hook and Loop, conductive plastic, strong double-sided adhesive, 3M,
Sony special stickers, backlit screen, and other electronics industry, IT industry membrane switch,
Automotive manufacturing used in the stickers products. aluminum foil, copper foil, PVC, PET, kraft paper, sponge jacket, pearl sheathed etc
Main Parameters:
ModelDP-320BDP-420B
Max Feeding Width ( mm )320420
Cutting Area ( mm )320*300420*400
Cutting Speed ( T/M)30-17030-170
Position Accuracy ( mm )±0.1±0.1
Power of Main Engine ( kw )2.23
Size ( mm )2300*1250*15002400*1290*1610
Voltage (V )380380

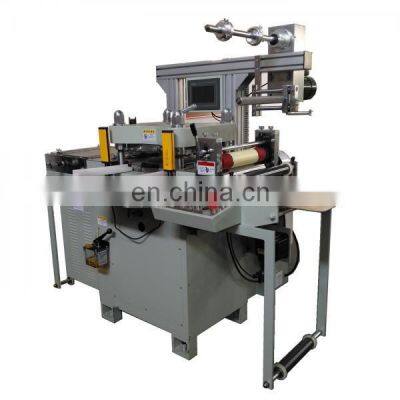

Product Picture:
Mitsubishi PLC
