Basic Info.
Type
Computerized Quilting Machine
Product Name
Comforter Quilting Machine
Quilt Size
2.4*2.6m / 2.6*2.8m / 2.8*3.0m / 3.0*3.2m
Head Function
Lifting & Trimming
Head Type
Direct Drive Sewing Head
Company Type
Manufacturer Since 2003
Transport Package
Wooden Box
Specification
5400*3600*1750MM
Production Capacity
50 Sets Per Month
Product Description

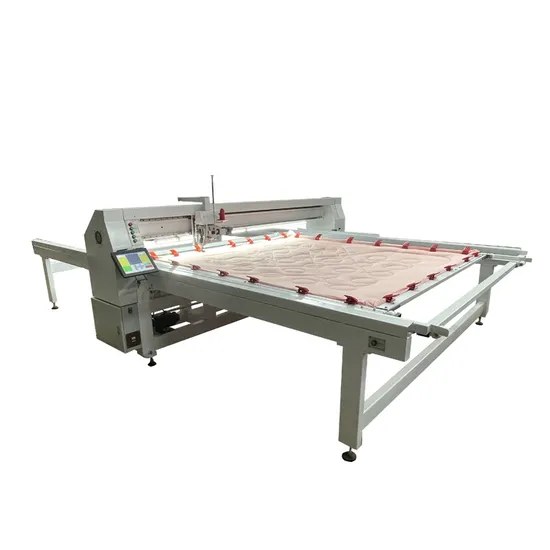

High Speed Single Needle Quilting Machine
SN-HSL SN-HSD
1. Computer Single Needle Quilting Machine For Quilt , Blanket ,Duvet ,Comforter......
2. Special Computer System For Quilting Machine With English Language ,Easy To Operate
3. Different configuration like Step motor,Servo motor,Lifting head,Direct drive sewing head,Automatic thread trimming, Automatic lubricating,Automatic back to original point,Touch screen computer ,WiFi system,Remote control system upgrade all are optional
4. Heavy And Durable Machine Body , High Stability and Accuracy
5. Automatic Scanning , Automatic Adjustment Pattern Design
6.High Speed from 2200-3000 RPM,Can continuous working long time every day
7. Equipped 300+ Kinds of DST Format Patterns
8. Non Human Damaged Parts Are Free For One Year , And Lifetime Online Guidance
Max Quilt Size | 2.4*2.6M | 2.6*2.8M | 2.8*3.0M | 3.0*3.2M |
Max Quilting Size | 2.3*2.5M | 2.5*2.7M | 2.7*2.9M | 2.9*3.1M |
Max Sewing Thickness | 9-10CM |
Voltage | 220V50HZ1.5KW |
Needle Size | SINGER MR5 18-22# |
Speed | 3000RPM 3500RPM |
Weight | 1500KG | 1550KG | 1600KG | 1650KG |
Tools Pattern Quilt Operation Table
Ordinary Sewing Head Direct Drive Sewing Head Step Motor
Servo Motor Sensor For HM Model Sensor For LA Model
FAQ
Q1: Warranty,Quality and ServiceA:We provide one year warranty,within one year,If machine damaged,we provide parts free;And we provide online guidance within 12 hours,lifetime service.Q2: Experience,Professional and EngineerA:We are a home textile manufacturer with almost 20 years experience,Our engineer online eight hours every day,we will give best guide before buying and after buyingQ3: Trust and SafetyA:We are a family business group,all of us working in this market and can only working in this field,we must do our best becausethere is no way of escape,no matter when you have troubles,you can find us always.Q4: Advantage and Why choose usA:We have are rich experience, professional team, never absent after-sales servicewe helped many many customers in the world,we are growing up together with all of our customers.
