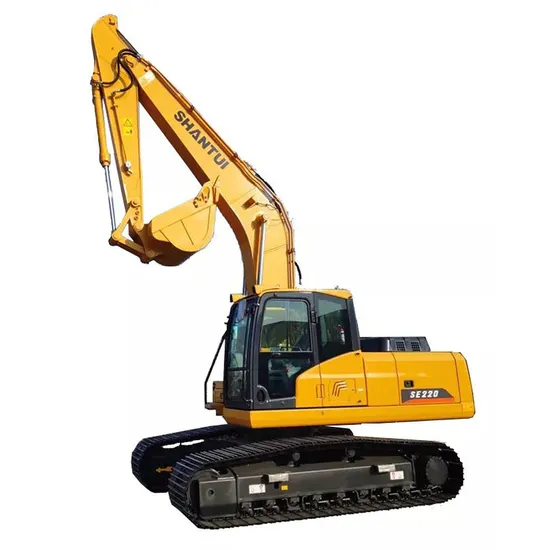

Shantui 22 Ton Hydraulic Crawler Excavator Se220 Se215 with 1 Cbm Bucket
Basic Info.
Model NO.
SE220
Type
Crawler Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
CE
Condition
New
Operation Weight
22000kg
Max. Digging Height
9690mm
Max. Digging Depth
6500mm
Max. Digging Reach
9820mm
Transport Package
Nude Package
Specification
8165*3016*3485mm
Trademark
Evangel
Origin
China
Production Capacity
100 Sets/Month
Product Description
Shantui 22 Ton Hydraulic Crawler Excavator SE220 SE215 with 1 CBM Bucket
Crawler EXCAVATOR SE215
OVERALL WEIGHT 20800kg
BUCKET CAPACITY 0.9m³
ENGINE POWER With 86kW/2200rpm, this engine conforms to China-III emission regulation
Optional attachments
Breaking hammer, ripper, timber grab, stone grab, hydraulic tamper, quick change coupling, and breaking hammer pipeline.
Spacious and comfortable operating environment
- The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator's visual fatigue.
- The control devices are reasonably arranged to realize large space, broad , and convenient and comfortable operations.
- The high-power A/C is installed and the adjustable wrist rest and the air cushioned seat are provided to help your all-day comfortable operations.
| Comparative item | SE220 (Standard version) |
| Overall dimensions | |
| Overall length (mm) | 9625 |
| Ground length (During transport) (mm) | 4915 |
| Overall height (To the top of boom) (mm) | 3075 |
| Overall width (mm) | 2800 |
| Overall height (To top of cab) (mm) | 3055 |
| Ground clearance of counterweight (mm) | 1075 |
| Minimum ground clearance (mm) | 470 |
| Tail turning radius (mm) | 2925 |
| Track length (mm) | 4140 |
| Track gauge (mm) | 2200 |
| Track width (mm) | 2800 |
| Standard track shoe width (mm) | 600 |
| Turntable width (mm) | 2725 |
| Distance from slewing center to tail (mm) | 2920 |
