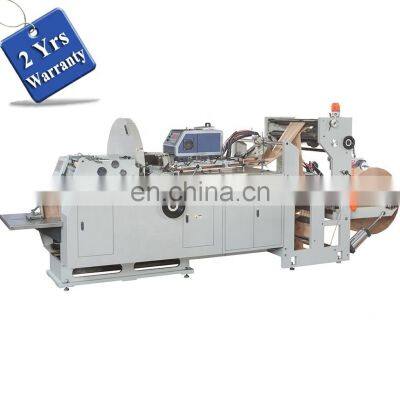

HD400B Auto Flat V Bottom bakery bread aluminum foil packing paper Bag Making Machine for toast banana mango fruit

Product Description

Product Description
HD400B Auto Flat V Bottom bakery bread aluminum foil packing paper Bag Making Machine for toast banana mango fruit
Videos
Video demonstration only for reference
Video 01: https://youtu.be/J79CINijNdk
Video 02: https://youtu.be/Qsrd_F3lKbw
Product Description
Description:
This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.
Features:
1. Controls bag length freely in a range through the human-machine interface
2. Adopt touch screen and PLC programmable control system, the work condition can be shown real time.
3. Equipped with an accurate photocell system for printed mark tracking
4. Color mark error stopping system
5. Double photoelectric sensor limit automatic correction control system
6. Material lifting adopt pneumatic lift structure.
7. Automatic lubrication system
Parameters:

Type	HD-400B	HD-600B
Cutting Length(C)	150-460 mm	230-625 mm
Bag Length(H)	145-455 mm	225-620 mm
Bag Width(L)	70-280 mm	70-280 mm
Gusset Depth(S)	0-50 mm	0-50 mm
Standard Flap(P)	12-20 mm	12-20 mm
Film Width	50-180mm	50-180mm
Film Thickness	0.015-0.04mm	0.015-0.04mm
Max.Speed	400 pcs/min	400 pcs/min
Max Film Diameter	450mm	450mm
Paper Thickness	30-80 gsm	30-80 gsm
Paper Roll Width	220-700 mm	220-700 mm
Max.Roll Diameter	1000 mm	1000 mm
Reel Inner Diameter	76 mm	76 mm
Total Power	8 kw	8 kw
Weight of Machine	3200 kg	3300kg
Overall Dimension	4580×1650×1850mm	4680×1650×1850mm

Detailed Images
Man-machine Interface Touch Screen
Automatic Counting System
Color Mark Tracking System
Paper Tube Forming System
Automatic Window Patching Device
Pneumatic Paper Reel Loader
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
Certifications
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
