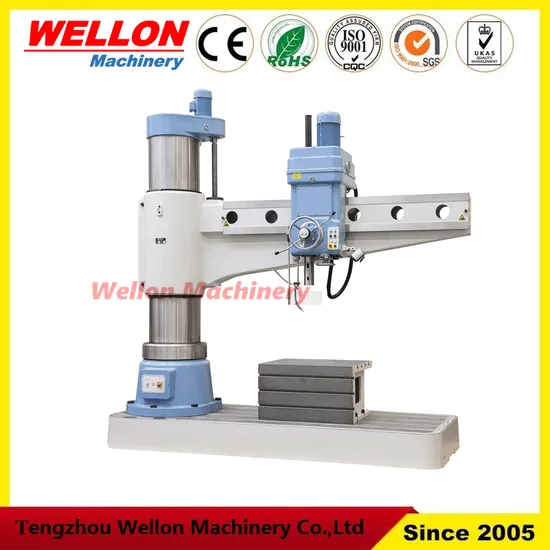

Z3063X20A Hydraulic Radial Drilling Machine 5 Percent Discount
Basic Info.
Model NO.
Z3063X20A
Structure
Radial Drilling Machine
Hole Diameter
50-100mm
Automatic Grade
Automatic
Certification
GS, CE, ISO 9001
Max. Drilling Diameter
63
Column Diameter
450
Spindle Travel
400
Spindle Taper
Mt5
Number of Spindle Speeds
16
Number of Spindle Feeds
16
Spindle Motor Power
5.5
Machine Weight
6800
Transport Package
Wooden
Specification
CE ISO900 rohs
Trademark
WELLON
Origin
Tengzhou China
Production Capacity
500 PCS/Month
Product Description
Detailed PhotosProduct Parameters
Gather mechanical-electrical-hydraulic functions, use extensively.
With wide range of speed and feed, with manual,power and fine feeds.
The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.
Main gears are all precision grind, ensuring high precision and low noise
| Specification | Units | Z3063×20A |
| Max. drilling diameter | mm | 63 |
| Column diameter | mm | 450 |
| Distance from spindle nose to base | mm | 400-1600 |
| Distance from spindle axis to column | mm | 450-2050 |
| Spindle travel | mm | 400 |
| Spindle taper | Morse | MT5 |
| Range of spindle speeds | r/min | 20-1600 |
| Number of spindle speeds | step | 16 |
| Range of spindle feeds | mm/r | 0.04-3.20 |
| Number of spindle feeds | step | 16 |
| Work table dimensions | mm | 950x630x500 |
| Base dimensions | mm | 2900x1250x250 |
| Table size | mm | 630x800 |
| Spindle motor power | kw | 5.5 |
| Machine weight | kg | 6800 |
| Overall dimension | mm | 348x147x221 |
Standard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench Certifications
