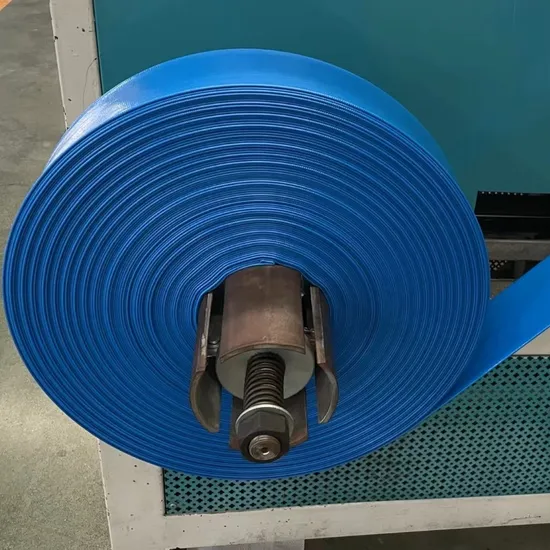

Blue Color 10 Bar PVC Lay Flat Hose

Product Description

Feature:
PVC compounds inner tube and outer cover , high tenacity polyester netting between inner tuber and outer cover. Inner tube and outer cover are extruded simultaneously , excellent bonding between layers. Designed for varous appilications , including light duty , medium duty and heavy duty . working pressure including 2-4bar , 6bar , 8bar-10bar . burst pressure= 3* working pressure REACH / ROHS standard available , environmental material , free of phthalates. 100% virgin raw materials , including pvc resin and plasticizers . excellent flexibility , easy to layout and pack during use . anti-chemical , anti- abrasion , aging resistant , long service life With UV stablizer , UV resistant Temperature resistant : -5ºC to 70ºC Applications:
discharge water under high pressure in agriculture , industry , mining.
Light Duty- Specifications

Inner Diameter		Wall Thickness	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	Bar	Bar	kgs/Mtr
1"	25	1.3	100	4	15	0.15
1-1/4"	32	1.2	100	4	15	0.17
1-1/2"	38	1.2	100	4	15	0.19
2"	51	1	100	4	12	0.22
2-1/2"	64	1.1	100	4	12	0.30
3"	76	1.1	100	4	12	0.36
4"	103	1.25	100	4	12	0.55
5"	127	1.35	100	3.5	10	0.75
6"	153	1.35	100	3	9	0.90
8"	203	2	100	3	9	1.60
10"	255	2.4	50	2.5	7	2.60
12"	305	2.35	50	2	6	3.00
14"	358	3	50	2	6	5.00
16"	408	3	50	2	6	6.00

Medium Duty-Specifications

Inner Diameter		Wall Thickness	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	Bar	Bar	kgs/Mtr
3/4"	20	1.35	100	6	21	0.11
1"	25	1.30	100	6	21	0.16
1-1/4"	32	1.20	100	6	21	0.19
1-1/2"	38	1.20	100	6	21	0.22
1-1/2"	40	1.40	100	6	18	0.225
2"	51	1.35	100	6	18	0.30
2-1/2"	64	1.55	100	6	18	0.43
3"	76	1.50	100	6	18	0.50
4"	103	1.90	100	6	18	0.80
5"	127	2.00	100	6	18	1.08
6"	153	2.40	100	6	18	1.60
8"	203	2.60	100	5	15	2.20

Heavy Duty- Specifications

Inner Diameter		Wall Thickness	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	Bar	Bar	kgs/Mtr
3/4"	20	1.55	100	10	30	0.14
1"	25	1.80	100	10	30	0.20
1-1/4"	32	1.50	100	10	30	0.21
1-1/2"	38	1.70	100	10	30	0.29
1-1/2"	40	1.90	100	10	30	0.30
1-3/4"	45	2.00	100	10	30	0.35
2"	51	1.55	100	8	24	0.35
2"	51	1.80	100	10	30	0.42
2-1/2"	64	1.90	100	10	30	0.70
3"	76	2.00	100	8	24	0.66
3"	76	2.55	100	10	30	0.85
4"	103	2.25	100	8	24	1.00
4"	103	2.70	100	10	30	1.20
6"	153	3.00	100	8	24	2.00
8"	203	3.20	100	6	18	2.80
