GCAN 2-Channel Isolated Variable Baud Rate CAN FD Debug Analyzer with Interface Card CAN Bus used by high-performance tools

Product Details

Product Description

Product Description
Overview Quick DetailsPlace of Origin:Liaoning, China
Brand Name:GCAN
Model Number:USBCAN II FD
Protocol:Support CAN2.0A, B protocol, comply with ISO11898-1 standard
Interface:Integrated 2 way CANFD interface
Communication baudrate:40Kbps to 1Mbps
Baud rate:CAN FD baud rate is arbitrarily programmable from 100Kbps to 5Mbps
Isolation level:2500V
Packaging & Delivery
Selling Units:Single item
Single package size: 21X16X6 cm
Single gross weight:0.500 kg
Package Type:Export carton
Lead Time:

Quantity(sets)	1 - 500	>500
Est. Time(days)	7	To be negotiated

Product description

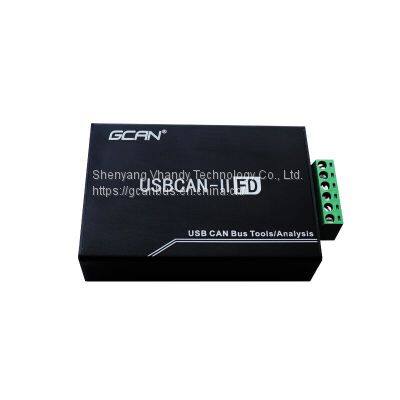

USBCAN-II FD is a high-performance CAN FD interface card developed by Guangcheng Technology specifically for the CAN FD network. The device integrates 2 CAN FD interfaces and supports ISO standard CAN FD and Bosch CAN FD standards. Engineers can use the device to debug and analyze CAN FD or ordinary standard high-speed CAN networks, and use the functions in ECAN Tools software to send and receive data easily.
USBCAN-II FD is a tool specially used for debugging and analyzing CAN FD network. The host computer software provided by this module supports Windows7 / Windows10 and other Windows operating systems. For secondary development users, our company provides secondary development function libraries and routines Users can use the function library to develop their own software by referring to routines, which can be widely used in product development and data analysis.
Product features

Specification	PC complies with USB2.0 high-speed specification
Protocol	Support CAN2.0A,B protocol,comply with ISO11898-1 standard
Interface	Integrated 2 way CANFD interface
Communication baudrate	CAN communication baud rate is arbitrarily progtammable from 40Kbps to 1Mbps
Baud rate	CAN FD baud rate is arbitrarily programmable from 100Kbps to 5Mbps
Resistance	Built-in 120 ohm terminal tesistance,can be controlled by DIP Switch
Operating temperature	-40℃~85℃
Isolation level	2500V
	CANFD supports ISO standare,BOSCHstandard
	Support ECAN Tools test sotrware,support Windows series system
	Provide host computer secondary development interface function

Support standard CAN2.0A / B and CAN FD data communication
Has two independent CAN / CAN FD channels
CAN FD bus with variable baud rate
Delivery and After-sale2~5 days after receipt of your payment by air express. GCAN provide one year free after-sales warranty, lifetime free software and technical support.
