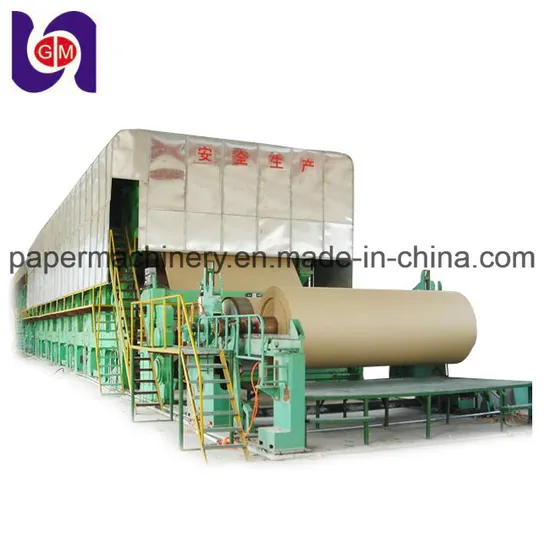

Hot Sale Carton Box Waste Recycling Machine, Kraft Paper Machine Price

Product Description

Hot Sale Carton Box Waste Recycling Machine, Kraft Paper Machine Price
Technical data:
Raw material: Waste paper, occ
Output paper: Kraft paper\corrugated paper
Output paper gram weight: 100-180G/M2;
Net paper width: 1200mm;
Wire width: 1450mm;
Capacity: 8T/D;
Rail gauge: 1800mm;
Drive way: AC frequency conversion speed. Drive part by part.
Frame of main part:
1. Cylinder part: φ 1250mm× 1450mm cylinder 2 PCS, φ 350mm× 1500mm couch 2 PCS, rubber shore hardness 38° ± 2. Reverse roll device.
Press part: φ 450mm× 1500mm top stone roll 2 PCS, φ 400mm× 1500mm rubber roll 2 PCS, rubber shore hardness 90° ± 2. Pneumatic pressurizing device.
2. Dryer part: 1500mm× 1450mm dryer can 4 PCS,
3. Winding part: Cylinder type winding machine.
4. Driving part: AC electric converter and adjustable speed, processing transmission, digital sealed ring control system.

NO.	Item	Qty(set)
1	1092mm Kraft paper machine	1
2	exhaust hood of dryer can(double layer)	1
3	Φ 700mm axial-flow ventilator	1
4	15 type roots vacuum pump	1
5	Suction box	1
6	1092mm winding machine	1
7	3 rolls calendar	1
8	1092mm rewinding machine	1
9	3 m 3 high consistency hydrapulper	1
10	1.8 m 2 high frequency vibrating screen	1
11	Decker machine	1
12	0.6 m 2 pressure screen	1
13	Φ 380mm double disc pulp refiner	1
14	600 low consistency sand remover	12
15	Φ 700mm thruster	4
16	4inch pulp pump	4
17	6inch pulp pump	4
18	8inch pulp pump	1
19	2ton boiler(burn coal)	1

raw metarial can be tree ,reed ,cotton,bamboo,bagasse,wheat straw,and all kinds of wasted paper
many spare parts will be free!!!!!!
packaging: products will packaged according to their shapes, weight, transport distance and transport modes. large machines will be packaged in sections. every part of export machinery will be in standard export package-seaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the intactness of products.
transportation: products will be transported according to their features and clients's needs. air, train and sea transportation are all available.
Perfect service :
1. Before sales service :
1) We supply complet consultating service ,we will check your requirement and your current situation and supply professional advice and make exact offer accordingly ;
2) we will supply detail project evaluation report and feasibility report according to your
situation and factory condition ;
3) we will make factory design according to your factory condition or land condition ;
2.after sales service :
1) we will send engineer to make intallation ;
2) after installation , we will keep engineer working for you , the engineer will teach your
worker how to operate ,maintain machine ;
3) we will supply spare part ;
4) when the machine normal working, any questions about this production line , seller must reply within 24hours and work out them within 48hours ,if necessary ,seller will send engineers to buyer's factory ;
company information
1.Following is main introduction of our company :
(1) total area of factory : 20,000m2 ;
(2) total qty of workshop : 4 ;
(3) workers : 110 workers ;
(4)engineer qty : 25 engineers ;
2.Why you choose us ?
(1) professional engineer team with 30years experience ;
(2) we can supply you turn -key solution without any trouble ;
(3) we have strict quality control system and ensure there is no unqualifiedly product ;
(4) professional installation technician and clear technical training for your workers ;
(5) strict recalling system : if any problem of machine ,we will recall it and change a new one for free ;
part of our successful production line
FAQ
1.Payment terms :
(1) 30% T/T within 10days after sign contract;
(2)70% T/T before shipment ;
(3) 100% L/C is also acceptable ;
2.delivery time : within 50days after first payment ;
3.design , installation and training workers :
(1) After client confirm machine model , we will make design completely according to client's technical
requirement and land condition ;
(2) After shipment , we will send engineer to make installation and test machine ;
(3) After installation , we will keep 1-2 engineers working for client , these engineer will teach worker
how to operate ,maintain machine ;
4. Turn- key project :
We can accept turn-key project ;
5.OEM :
We can accept OEM ;
If you interest our product ,please send us a inquiry for having a better understanding
about paper-making .And I 'd love to serve you !
if you scan the whole pag ,but you don't get the information you want to know,you can also contact us to tell uswhat you want to learn aboout paper machine when you browse web pag though the above ways.only in thisway can we both have a further understanding about paper machine,and we can provide you customers a detailed and comprehensive understanding about paper making in the near future,we will treat your advice seriously.
