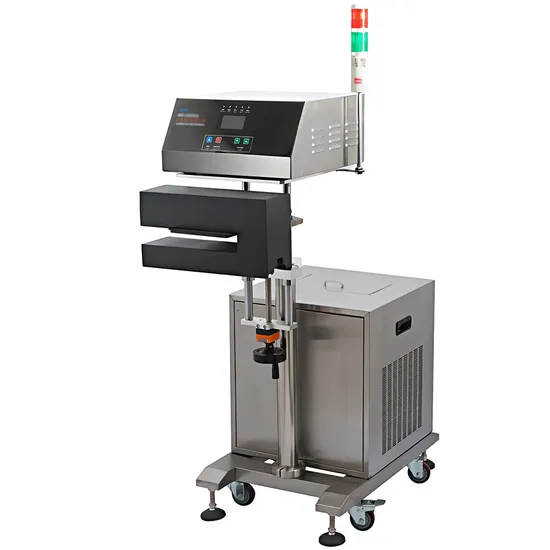

Induction Cap Sealing Machine Water Cooled Tunnel U Shape High Speed

Product Description

Product Description This water-cooled electromagnetic induction sealing machine is designed for high-speed continuous cap sealing with aluminum foil liners, ideal for package of food, medicine & health care, veterinary drugs, chemical, and cosmetics to achieve firm and secured sealing effect of the container or bottle cap closure.
Technical Features Three-track three-dimensional magnetic field induction mode. Accurate control of magnetic and thermal intensity. Double water pump circulation heat dissipation, greatly improve the heat dissipation efficiency. Built-in regulated power supply, stable constant output of auxiliary power. Excellent anti-electromagnetic interference performance. Fully enclosed module chip circuit improves performance reliability and greatly extends lifetime. Structure & Operation Features Easily adjusting the sealing height by spiral sliding & lifting device, maximum lifting distance 420mm. With 304 stainless steel enclosure, protection grade IP51, meet the GMP demand. The sensor head material is made of ABS alloy in integrated structure. Low noise operation design: Noise < 65DB. PLC touch screen panel is available at extra cost. Conveyor is available at extra cost. Safety Features Intelligent electrical protection system (over voltage, over current, overheat, water shortage, blockage). An audible & visual alarm is automatically triggered when the running status is abnormal. Detect and prevent bottles from being overheated and fire (optional function). Count the quantity of sealed products (optional function). Detect a certain of issues including cap missing, aluminum foil missing. (optional function) Product Parameters

Power frequency	AC220V 50/60 Hz (customizable)
Power Output	Max. 4000 W
Induction Mode	Three track stereo magnetic field induction
Cooling Type	Water-cooled
Line Speed	Up to 24 meters/min. (Approx. 240 BPM)
Sealing Height	860-1260mm (customizable)
Bottle Height Range	10-390mm
Cap Diameter Range	15-45 mm / 50-80mm / 60-120mm 30-80mm / other range customizable.
Applicable Caps	All regular flat plastic caps, shaped tip caps, CRC caps, etc.
Applicable Containers	Plastic, Glass
Warranty	First 1-year limited free warranty. From 2nd year till lifetime, paid warranty is available by charging on material and labor cost.

Packaging & Shipping
Wooden Case #1	1330*860*600mm
Total Weight	140 Kgs
