Haichen Plastic Drying Machines Xd-300u/200h 3-in-1 Dehumidifier Dryer with Loader

Product Description

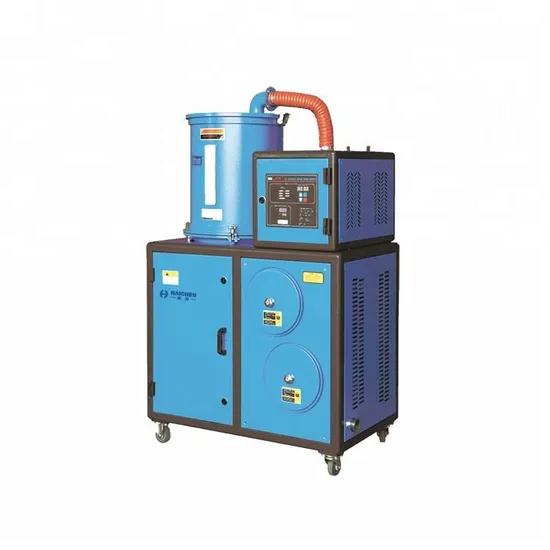

Haichen Plastic Drying Machines XD-300u/200H 3-in-1 dehumidifier dryer with loader
Product description
Featrue:
• XD dehumidifying,drying and feeding unot equipped honeycomb dehumidifer.

• Used for high hygroscopic engineering plastic and rubber such as PA,PC,PBT,PET.etc,H4and H5 types of can be selected according customer's demand.

• Integrates dehumidifying,drying and two-step feeding function,the three-step feeding is available.

• The moistureproof drying material tube adopt bottom blowing design with circling air exhausting device,precent heat energy emitting,keep temperature,improve drying effiency.

• Airtight loop feeding system,precent the dried raw material to be re-moisture by contact external air.

• With built-in restrictive valve,guarantee no remained material in pipe.

• Use two cooler in dehumidifying system,guarantee low temperature on air and dew-point.

XD-Model		XD-80u/ 90H	XD-120u/ 90H	XD-160u/ 120H	XD-230u/ 150H	XD-300u/ 200H	XD-450u/ 300H	XD-600u/ 400H	XD-750u/ 500H	XD-900u/ 700H	XD-1200u/ 700H
Drying system
Moistureproof bottom capacity(L)		80	120	160	230	300	450	600	750	900	1200
Dry heater power(kw)		3.9	6	6	7.2	12	15	18	21	24	24
Dry blow power(kw)		0.4	0.75	1.5	1.9	1.9	2.6	3.4	5.5	5.5	5.5
Dehumidifying system
Dampproof air(m/hr)		90	90	120	150	200	300	400	500	700	700
Regen heatr power(kw)		2.8	3.5	3.5	4.	5.4	7.2	7.2	10	10	10
Regen blow power(kw)		0.2	0.2	0.2	0.4	0.4	0.75	0.75	14.9	1.9	1.9
Loading system
Loader blow power(kw)		0.75	0.75	0.75	1.9	1.9	1.9	1.9	1.9	2.2	2.2
Suction pipe(inch)		1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	2	2
Photoelectric hopper(L)		6	6	6	12	12	12	12	12	12	12
Standard hopper(L)		6	6	6	6	6	6	6	6	12	12
Size(mm)	Length	1200	1200	1300	1500	1600	1700	1700	2100	2100	2100
	Width	1000	1000	1100	1360	1360	1400	1400	1500	1500	1500
	Height	1870	1870	1900	2060	2060	2300	2300	2700	2700	3200
Weight(kg)		330	376	385	435	570	600	700	750	850	950

more products
about us

Ningbo HAICHEN Machinery Co.,Ltd.is located in Ningbo,Zhejiang Province,the global manufacturing centre of plastic injection molding mahcinery,which is east to Ningbo Port.It is in superior location with convenient traffic.

After ten years' strenuons efforts,now the products of the brand ''HAICHEN" have spread to most provinces and cities in China,as well as over 50 countries in six continents throughout the world.Under the backrround of the global economy,being affected by the economic impulse of the emerging markets in the world,HAICHEN has expanded its vision and layout to the whole world.

Our company is specialized in producing 12~1500kg plastics dryera,XD-90~1000 dehumidifying dryers,XDL-50~XDL-400(two in one),XD-80u/90H~XD1200u/700H(three in one ),50~200kg plastics color-mixers,300~900 type vacuum materials autoloaders,180~1000 type plastic crushers,3HP~100HP indusrrial chillers,6kw-25kw automatic mold temperature-controls and many other auxiliary equipments products for series of plastic machinery.

Our company adopts information management,equipped with many processing equipments like advanced laser metal plate cutting machine,numerical control turret punch press and computerized flame cutting machine,as well as environmentally friendly oil film paint fog clean roon and all kinds of professional inspection equipments.the company has passed ISO-9001 authentication,Europen BVCE authentication.The manufacturing of the products strictly abide by quality management system.

Our company is always sticking to the business principle of "operate with honest and servi with enthusiasm",We establish the marketing philosophy of "to creat value for customers "and orient the market and customer demands.With scientific management and superior quality,"HAICHEN" will face new challenge and opportunities to plough through and create a magnificent chapter in the 21th century together with customer.We welcome all new and old customers to make a negotiation and cooperation.
