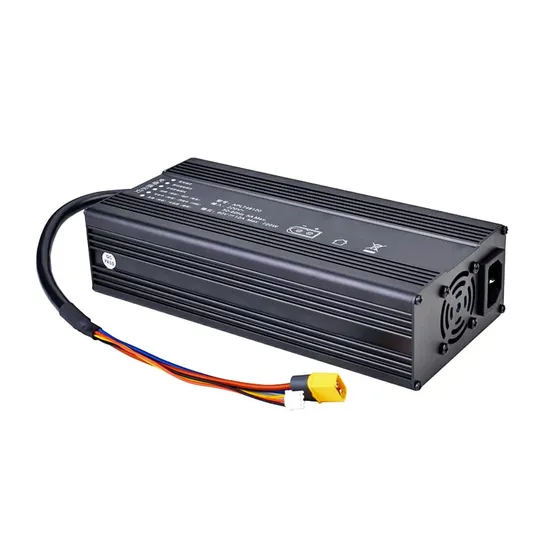

Canbus Battery Chargers 17s 51V 54.4V 5A 5.5A 360W LiFePO4 LiFePO 4 Rechargeable Batteries DC 61.2V/62.05V 5A 5.5A Charger C-Tick FCC GS Ices SAA Rcm Ukca UL
| US$40.00-50.00 | 200 Pieces (MOQ) |
Basic Info.
Model NO.
QW544-055-FC
Charger Application
Standard Battery
Nominal Voltage
62.05V
Charger Style
Intelligent Charger
Compatible Battery Type
51V
Size
204*100*55mm
Certification
KC, PSE, RoHS, CB, CE, C-Tick FCC GS Ices SAA Rcm Ukca UL
Socket Type
Au/EU/UK/Us Plug
Recyclable
Recyclable
Input Voltage
100-240VAC 50/60Hz
Color
Black
Transport Package
Corrugated Paper Packing Box
Specification
Weight: 1500± 10g(only body)
Trademark
QUAWIN/OEM
Origin
Shenzhen
HS Code
850431900
Production Capacity
50000 Pieces
Product Description
Quick Detail:Brand Name:QUAWIN
Model Number:QW544-055-FC
Use:17S 51V/54.4V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 62.05V
Color:Black/Silver
Shell Material:Aluminium alloy
Additional features:CANBUS Communication Protocol
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:62.05V
Output current:5.5a(Max)
Output power:341.275W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Certification:CB CCC CE C-TICK FCC GS ICES KC PSE SAA RCM UKCA UL
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Packaging & Delivery : 12pcs/Carton
Carton size: 535*315*280mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Specifications:
17S 51V/54.4V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load):>=90%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 62.05V
• Charging current: 5.5a(Max)
• Dimensions (mm): 204*100*55
• Weight: 1500±10g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
• Overheating protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH Call us to know more details datasheet.
| Typical Product Model | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-200-FC | (LiFePO4) | AC 100~264V | 12.8(4S) | 14.6 | 20 |
| QW256-120-FC | 25.6(8S) | 29.2 | 12 | ||
| QW384-080-FC | 38.4(12S) | 43.8 | 8 | ||
| QW512-060-FC | 51.2(16S) | 58.4 | 6 | ||
| QW640-050-FC | 64(20S) | 73 | 5 | ||
| QW768-040-FC | 76.8(24S) | 87.6 | 4 | ||
| QW148-200-LC | (Lithium) | 14.8(4S) | 16.8 | 20 | |
| QW259-120-LC | 25.9(7S) | 29.4 | 12 | ||
| QW370-080-LC | 37(10S) | 42 | 8 | ||
| QW481-060-LC | 48.1(13S) | 54.6 | 6 | ||
| QW629-050-LC | 62.9(17S) | 71.4 | 5 | ||
| QW740-040-LC | 74(20S) | 84 | 4 | ||
