PVC Flooring Cutting Machine with China Factory Price

Product Description

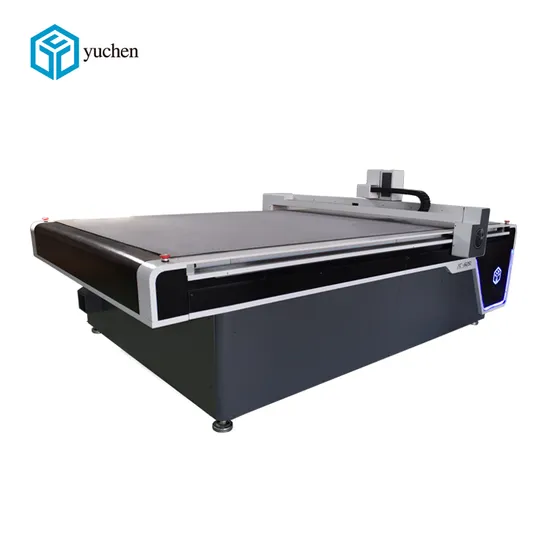

PVC flooring cutting machine with China factory price YC-1625L
Model: YC-1625L Machine size can be customized
Brand: Yuchen
Applicable cutting materials:different kinds of soft materials, sucha as car mats, car seat, PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, cardboard, plastic board, Grey board, white board, gasket,etc
Application: widely used in automotive interior industriy,garment, shoe, bag, packaging industry and advertising industry.
Functions: cutting(oscillating cutting tool),
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as rotary cutting tool, punching, v-cutting tool, creasing wheel,milling cutting tool.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Parameter:

Model	YC-1625A	YC-1625L	YC-2030A
Working area	2500×1600mm	2500×1600mm	2000×3000mm
Operation properties	Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device	Infrared adopted; sensitive response; safe and reliable
Maxi cutting speed	1200mm/s
Translational velocity	1500mm/s
Applicable materials	Mats, PVC, leather, foam composite material, XPE, etc
Multifunctional head	oscillating cutting tool,wheel knife tool
Cutting thickness	0.1-20mm(subject to material) 0.1-10.0mm(subject to the material cutting)
Cutting tolerance	±0.1mm
Transmission interface	Ethernet
Transmission system	Motor:Panasonic or Fuji Linear rail:Hiwin
Fixed mode	Vacuum absorb
Supply voltage	AC 220V 380V±10%,50HZ
Rated power	11KW
