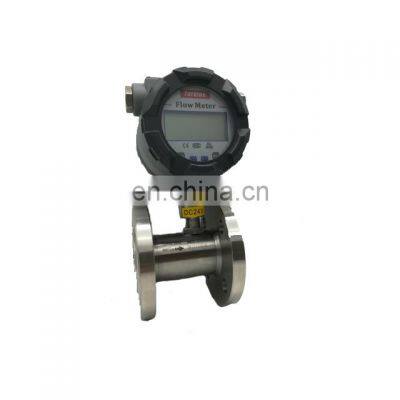

LWGY Liquid Turbine Flow Meters Exhaust Gas Flow Meter Digital Diesel Fuel Flow Sensor

Product Description

Product Description
Product DescriptionThe liquid turbine flow meter in the series LWGY are specially designed for usage in water, diesel, gasoline and other fluid measurement and control systems. They operate according to the turbine principle, i.e.The speed of an impeller turning in the fluid flow is measured and converted into pulse or 4-20mA signalsSpecificationPlace of OriginChinaBrand NameTmeasurementModel NumberTEMGB TypeTurbine FlowmeterOutput4-20mAAccuracy±1.0%/1.5% of RateOperating Temperature-20...+60℃Body Material:SS304;SS316Fluid Temp (liquid)-20...+150℃Rotor Material (liquid)2Cr13; CD4MCuBearing Material (liquid)Tungsten CarbideRotor Material (gas)Aluminum alloy, Plastic ABSItemTEMGB Turbine FlowmeterTypeTurbine FlowmeterFluid entering the meter first passes through an inlet flow straightened that reduces its turbulent flow pattern. Fluid thenpasses through the turbine, causing the turbine to rotate at a speed proportional to fluid velocity. As each turbine blade passesthrough the magnetic field generated by the meter's magnetic pickup, an AC voltage pulse is generated. These pulses provided an output frequency that is proportional to volumetric flow.The Gas turbine flow meter in the series LWQ are specially designed for use in natural gas, compressed, air and other fluid measurement. And the volume and mass flow rate are available.The turbine wheel is mounted on the main shaft, with special high precision, low friction ball bearings. The turbine wheel has helical blades that have know angle relative to the gas flow. The conditioned and accelerated gas drivers the turbine wheel with an annular velocity that is proportional with the gas velocity.Company ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.About Us
