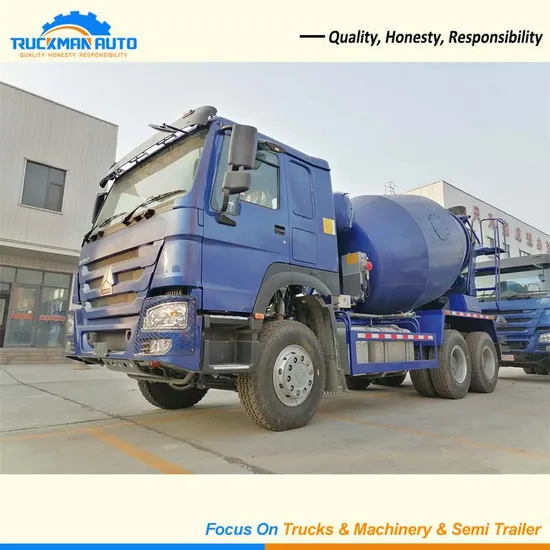

6x4 10 Wheels SINOTRUK HOWO 380HP 10 CBM Concrete Mixer Truck For Engineering Construction

Product Description

Product Description
SINOTRUK Concrete Mixer Truck Introduction
Concrete mixer truck is composed of power take-off device, front and rear supports of mixing drum, reducer, hydraulic system, mixing drum, maneuvering mechanism, cleaning system, etc. It is a special truck used to deliver ready-mixed concrete for construction. The working principle is that the power of the truck chassis is taken out through the power take-off device and drives the variable pump of the hydraulic system, which converts the mechanical energy into hydraulic energy and transmits it to the quantitative motor, which in turn drives the reducer, which drives the mixing device to mix the concrete.
SINOTRUK NX 380HP Concrete Mixer Truck Specification

Engine
Model	WP10.380E22
Horsepower	380HP
Emission	Euro 2
Other	4-stroke direct injection diesel engine
Cabin
Model	HW76,with one bed, A/C
Other	Four full floating suspension + suspension device
Gearbox
Model	HW19710, 10 forward and 2 reverse gear
Max.Input Torque:	1900NM
Tire
Model	12.00R20 , 10+1 pcs
Brand	TRIANGLE
Pattern	TR668
Fuel Tank
Model	300L
Material	Aluminum alloy
Drive Axle
Model	MCX16ZG
Load Capacity	16000kg
Tank Body
Volume	10 CBM
Material	Carbon steel

HOWO 6x4 Concrete Mixer Truck Gearbox
The concrete mixer truck adopts HW series gearbox with high torque and high transmission efficiency. The design of double intermediate shafts in the main box and planetary gears in the secondary box of this transmission is more advanced, together with the function of forced lubrication of the main and secondary boxes, it is suitable for all kinds of harsh working conditions and ensures that no teeth are burned in the engineering transportation scenario and the performance is more reliable. The adoption of planetary transmission mechanism can effectively overcome the problem of early failure of the subcase, greatly extending the service life of the transmission assembly.
Production Technology
SINOTRUK HOWO Concrete Mixer Truck Robot Automatic Welding
Our truck tanks and cargo boxes are welded using automatic robotic welding technology, which integrates advanced computer control, sensor technology and mechanical engineering technology to realize a high-precision, high-efficiency and high-quality welding process. Compared with traditional manual welding, robot welding can ensure that every welding is accurate through precise trajectory planning, which greatly improves the welding precision. It has many advantages such as stable operation, good consistency of welding quality, high degree of automation, and strong personal safety guarantee. Anti-rust Measures
SINOTRUK 10 CBM Concrete Mixer Truck Waterproof Tarpaulin
When trucks are loaded onto ships, we cover them with waterproof tarps, which are usually made of waterproof materials such as PVC or polyethylene-coated fabrics, which allows them to protect the trucks from seawater or other liquids in a variety of weather conditions. The waterproof tarps we cover have good abrasion resistance and durability, improving their resistance to UV rays and chemicals. Serious rust and corrosion can occur if vehicles are not protected as necessary during transportation. Covering with a tarp and placing it inside the boat has proven to be effective in protecting the vehicle from corrosion.
Customer Visits And Feedback
Customer Feedback
Zambia customers through the recommendation of friends to find our company, asking the price of the mixer truck, after communication, learned that the customer is responsible for wanting to mixer trucks will be responsible for transporting concrete from the mixing plant to the construction site, the road condition is mud and gravel road, we recommended to the customer is equipped with 12.00R20 tires of SINOTRUK concrete mixer truck, the customer received, the use of a very good, the customer is very satisfied with our mixer trucks. Our mixer truck also helped the customer to realize the rapid development of his career.
Company Customers Visit
We have trucking business all over the world and our customers come from all over the world. When customers want to visit our company, we can help them book hotels and can pick them up at airports and high-speed railway stations to come to our company. We will help customers make a good plan to visit our factory production lines and offices so that they can know more about our products and services. Meanwhile, we can also lead our customers to visit our city and experience the local specialties. We also welcome more customers to visit us.
After Sales Service
Spare Parts Warehouse
We have a large parts warehouse with a wide variety of categories for various truck brands, while our company has many years of industry experience and technical strength to provide customers with a full range of parts solutions. We are able to provide high-quality products and a full range of parts support to provide users with a safe and reliable driving experience. If the customer needs a large quantity, we can ship to the customer in containers, if the customer needs a small quantity and urgent need, we can ship by air, which can reach the customer very quickly.
Certifications
HOWO 10 Wheels Concrete Mixer Truck Certification
A certificate of origin is a document provided by an exporter and issued by a notary public, a government or an exporter that certifies the origin or place of manufacture of goods.CNCA is a Cargo Certificate issued by the Angolan Customs for maritime cargo destined for Angola. The certificate is handled by the consignor or intermediary and contains information such as the name of the ship, voyage, bill of lading number, ship's registration and container type. Failure to present the CNCA certificate will result in serious consequences and fines. All our trucks are certified in Angola and meet the requirements of the local customs, and we do this free of charge for our customers, so they can have complete peace of mind.
Ocean Bill Of Lading
Bill Of Lading
This is our tractor and tank semi-trailer to Sierra Leone and tipper truck to Guyana. After the customer placed the order with us, we quickly completed the production, loaded the ship and shipped it to the destination port. During the cargo transportation, we also kept informing the customer about the ship's position, and finally helped the customer to clear the customs in the destination port smoothly. After receiving the truck, the customer started to use it and gave feedback that the quality of our truck is very good and will continue to cooperate with us.
Company Profile
Company Introduction
JINAN TRUCKMAN AUTOMOBILE Co., Ltd. Was established in year 2010, that mainly focus on SINOTRUK, SHACMAN, BEIBEN, FOTON All series new trucks, and all China brand new construction machinery, CIMC and TRUCKMAN semi-trailers And full Trailers export business. The goods can meet all certificate and different work demand, such as BV, SGS, CO, CIQ, GCC, SONCAP, FORM E, ADR certificate etc, also with reasonable price. With years development, our business extended to more than 60 more countries and regions in the world like Nigeria, Angola, Ghana, Tanzania, Kenya, Djibouti, Ethiopia, Mali, Congo, Philippines, Vietnam, Malaysia, Laos, Myanmar even Latin America countries like Chile, Peru...We take"Quality, Honesty, Responsibility" as our enterprise core value to make you best cooperation experience. TRUCKMAN people are brave in pioneering and innovative management, and practice their corporate mission with professional services, and are committed to becoming a world-class enterprise with international characteristics.
Personal Introduction
This is Luna from TRUCKMAN, China
I am familiar with the performance and operation of various trucks, have been in contact with many African clients and am very familiar with the African market. And can recommend suitable trucks for customers according to their local market and needs.
Strong execution ability, after understanding the customer's purchasing needs, I can quickly send a detailed quote to the customer.
Be patient with customers, I will carefully reply to every message and help customers to solve problems.
