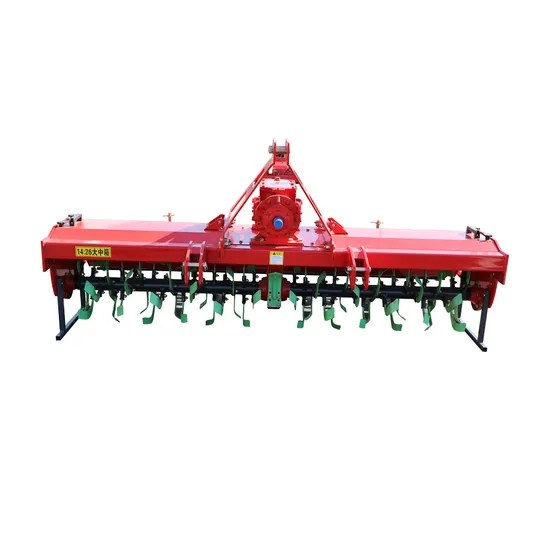

Robust Tractor with Integrated Rotary Tiller for Multi-Use

Product Description

Product Parameters

Model	1GQN-250
Supporting power(KW)	88.2-117.6
Dimension(L*W*H)(mm)	1520*2820*1200
Working speed(m/s)	0.55-1.66
Working width(mm)	2500
Max turning radius of cutter roller(mm)	245
Blade Qty of cutter roller	72
Cutter shaft type	Single shaft type
Rotary blade model	IT245
Structural type	Frame type

Detailed Photos
1GQN-250 Our Robust Tipper Truck with Integrated Rotary Tiller is ingeniously designed for versatile agricultural applications. This multi-use marvel excels in plowing, soil breaking, land preparation, soil loosening, weeding, and land fragmentation, making it an indispensable tool for modern farming efficiency and productivity.

Product Description
More detailed technical information about 1GQN-250
Adopting a high-strength integrated frame structure, this machine boasts exceptional rigidity, ensuring robust durability and longevity. The cutter shaft employs double-head boring holes with superb coaxiality, offering smooth transmission. The spline shaft is designed for minimal wear, significantly prolonging its service life. The cutter shaft features self-aligning bearings with exceptional load-bearing capacity, promising superior strength and an extended lifespan. Our innovative broken soil roller ensures soil particles are optimally sized, preventing the formation of a hard soil layer on the surface and enhancing soil structure. The gearbox gear is crafted using an integrated forging process, yielding high-precision gears with an enlarged meshing area between teeth, capable of handling high power loads. The grain drill can be seamlessly connected, streamlining operations and boosting efficiency. Features a flip-up cover for effortless cleaning, ensuring no clogging issues. Our machine undergoes an electrophoresis spraying process, providing excellent anti-corrosion properties and resistance to aging. Users can choose from various types of cutter shafts and pressing rollers to cater to diverse operational needs, ensuring maximum versatility. Company Profile
Shandong King Machinery Co., Ltd. is a national high-tech enterprise focusing on the research and development, manufacturing and export of agricultural machinery. Its main products include corn harvesters, grain combine harvesters, soybean harvesters, peanut harvesters, rice harvesters and other harvesting machinery as well as tractors, agricultural auxiliary tools, etc.
The company covers an area of 300,000 square meters, has nearly 1,000 employees, has 30 years of experience in agricultural machinery production, provides customers with quality services, and its products are exported to more than 30 countries and regions including Russia, South America, Central Asia, Southeast Asia, Africa, etc. The company has more than 70 scientific and technological invention patents. With good management and R&D capabilities, it continuously innovates and designs according to customer needs, produces different models, and has won unanimous praise from domestic and foreign customers with excellent product quality, independent R&D capabilities, and perfect after-sales service. "Serve customers and make progress together!" In the future, we will continue to work hard in the field of agricultural machinery and equipment, continue to provide good products and services to the world, continue to provide farmers with the best planting support, strive to be a pioneer and leader in the research and development and manufacturing of various agricultural machinery, and be the KING of agricultural machinery.

The most advanced technology ensures the excellence of the product
The most diverse choices to meet the different needs of customers
The most sophisticated technical team provides the most timely and professional technical services
