Alt-Fd1600 Disposable Rewinding and Perforating Machine

Product Description

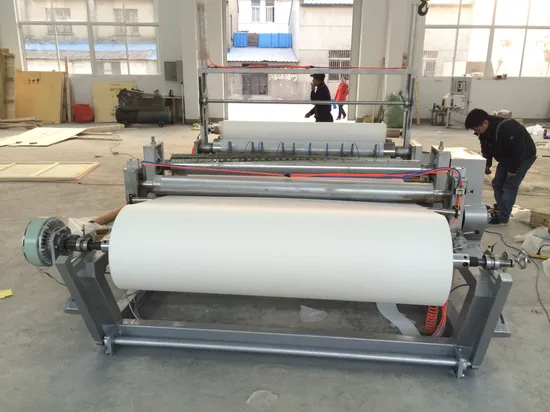

ALT-FD1600 disposable Rewinding and Perforating machine
Performance characteristics
Automatic Rewinding and Perforating machine adopts advanced PLC computer programming and automatic detection technology. Frequency control, continuously variable adjustment, electronic braking. Man-machine interface and multiple function device; Automatic Rewinding punch instead of the previous manual and semi-automated secondary manual rewinding. Improve the efficiency, Reducing the amount of labor and the issues of workers' wages. It Is directly relevant to reduce production costs fully automated production equipment.
Overall Part Description:
Overall Part :Frame # 8 channel steel welded together,
Feeding parts: magnetic powder brake and manual tension controller adjust the tension
Loading part: pneumatic synchronized feeding
Traction part: pneumatic steel roller and the rubber roller traction, and equipped with AP125 flywheel can adjust the speed and metres
Punching part: punching section length 100-2000 adjustable(can rbi or not)
Rewinding part: roller surface length: 1100mm.
Catheter part: with aluminum alloy guide roll
Slitting part: pneumatic knife slitting, size can be adjusted (with 10pcs slitter)
Unwinding part:Unwinding air shaft φ76 = 1 roots.
Rewinding part: Rewinding air shaft φ76 = 1 roots.
Counting part: electronic digital counter ,it can count the length of section ,Can count the meters (with automatic stopping).
Raw materials Diameter: ≤ φ800mm
Raw material Width: ≤ 1600 mm.
Finished products diameter: ≤ φ800mm
Machine capacity :0-80 m / min
Technical parameters:
1: Power supply: AC380V, 50HZ
2: Power: 8.5KW
3: Design speed: 100 m/min
4.speed :0-80m/min
5: Dimensions: 2500 * 2100 * 1400
6:N W: 2500KG
7.GW:2900KW
Free parts:
1 :one set of allen wrench
2 :two pcs of soft blade
(raw material width under 1600mm)
