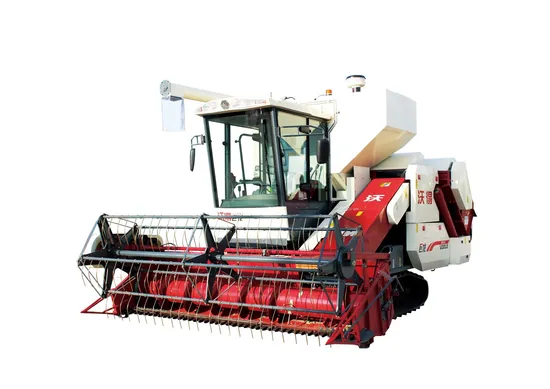

Combine Harvester 4lz-5.5A/6.0A
| US$24,000.00-29,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4LZ-5.5A/6.0A
Application
Rice, Corn, Wheat, Soybean
Power Source
Diesel
Harvest method
Cutting
Drive Type
Vee belt
Transmission
Hard Shaft
Portable Harvester Type
Backpack Type
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Cutting Width
3.2/3.9m
Transport Package
No Package
Specification
JULONG
Trademark
World
Origin
China
HS Code
843351
Production Capacity
1, 0000 PCS/Year
Product Description
1. Double threshing drum to reduce grain loss (size 1330*556mm, 850*400mm).2. The reel bat rotates with stepless speed change; Hydraulic lifting.
3. The gearbox is with built-in friction plate used on car; The outer diameter of the clutch belt pulley is 268mm without wheel box.
4. Reinforced chassis with a min. Ground clearance 275mm, fully-sealed wheel train as head-feeding type.
5. Centered big grain tank of 1.5m3 with alarm light and grain-discharging light; With grain tank distributing auger.
6. With two-way hydro cylinder debunker and fan heater.
7. With extensional grain-discharging auger lengthened by 50cm; Maximum height from ground reaches over 2.5m.
8. Synchronous double hydro cylinder ensures the stability of lifting of wider cutting header.
| Type | JULONG | ||
| Model | 4LZ-6.0 self-propelled combine harvester | ||
| Feeding capacity | 6.0KG/S | ||
| Ground clearance | 350mm | ||
| Overall dimension (L× W× H) | 5560× 5000× 3550 | ||
| Overall weight | 3800 | ||
| Track type | 600*90*56 | ||
| Engine | Type of engine | 4110 | |
| BHP of engine | 125HP @2600RPM | ||
| Cylinder of engine | 4 cylinders | ||
| Cooling System | Water Cooled | ||
| Cutter bar | Cut width | 320/390mm | |
| Blade moving range | 76.2mm | ||
| Feeding auger diameter | 500mm | ||
| Height Adjustment | Hydraulic | ||
| Cutting Height Min | 50mm | ||
| Reel | Rotation speed | 32-45RPM | |
| Speed adjusted | Mechanical | ||
| Height adjusted | Hydraulic | ||
| Thresh drum | Diameter of thresh drum-I | 564mm | |
| Rotation speed of thresh drum-I | 850RPM | ||
| Length thresh drum-I | 1330mm | ||
| Diameter of thresh drum-II | 420mm | ||
| Rotation speed of thresh drum-II | 1300 RPM | ||
| Length of thresh drum-II | 1330mm | ||
| Adjustment | Mechanical | ||
| Sieve | Upper sieve type | Grid sieve | |
| Upper sieve area | 0.96 m 2 | ||
| Lower sieve type | Punched sieve | ||
| Lower sieve area | 1.06 m 2 | ||
| Adjustment | Mechanical | ||
| Fan | Diameter | 360mm | |
| Speed adjusted | Mechanical | ||
| Travelling speed | I-gear | High | 3.96km/h |
| Lower | 1.6 km/h | ||
| II-gear | High | 5.04 km/h | |
| Lower | 2 km/h | ||
| III-gear | High | 9.0 km/h | |
| Lower | 3.6 km/h | ||
| Backward-gear | High | 2.88 km/h | |
| Lower | 1.18 km/h | ||
| Capacity | Grain tank | 1.5CBM | |
| Fuel tank | 100L | ||
| Hydraulic oil tank | 32L | ||
| Grain unloading | Type | Mechanical | |
| Unloading height | 2300mm | ||
| Hydraulic system | Hydraulic pump type | CB310N | |
| Hydraulic pump rotation speed | 1200-2500RPM | ||
| Multi-way valve type/pressure | DLT-230/10MPa | ||
| Hydraulic cylinder | Cutter bar cylinder type | YD50C | |
| Reel cylinder type | YD25 | ||
| Steering cylinder | SZ25 | ||
| Electric system | Batterytype/voltage/volume | 6-Q-1205/24V/120Ah | |
| Oil | Fuel | 0# light diesel oil | |
| Hydraulic oil | L-HM68 | ||
| Gearbox inside | 18# hypoid gear oil | ||
| Bevel gear box inside | Lubricant grease | ||
