Liquid Emulsify Agitator Electric Steam Heating Mixer Jacketed Stainless Steel Mixing Tank
Basic Info.
Model NO.
BLS series
Application Area
Food
Certification
CE, ISO, CE, ISO
Condition
New
Heating Method
Steam Heating
Main Material
Stainless Steel
Mixing Drum Shape
Drum
Stirring Type
Forced
Working
Diffusion Mixer
Material
Ss304, Ss316
Sanitary
Stainless Steel
Processing
Food, Beer, Beverage, Dairy
Experience
20 Years Experience
Max. Loading Capacity
10000L
Technics
Forged
Test
SGS
Processing Types
Carbonated Beverage
Dimension(L*W*H)
All
Tank Form
Single/Double Layer/Three Layer
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Carton Cases&Wooden Case
Specification
100-10000L
Trademark
BLS
Origin
Zhejiang, China
HS Code
8479820090
Production Capacity
100 Set/Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
500.000kg
Product Description

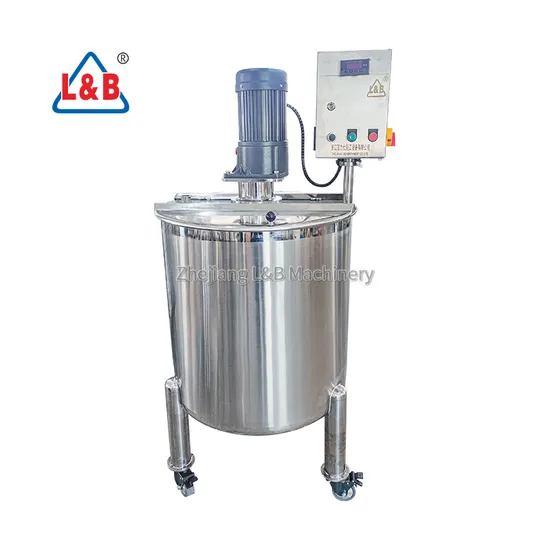

Product DescriptionSanitary Stainless Steel mixing tank (beverage mixing tank, syrups mixing tank)
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics:
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
It can be made according to special requirements of customers. Total height (H) is in accordance with outlet height of 800 mm. If outlet height is changed, then total height(H) shall also be adjusted.
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
| Main technical parameters | ||||||
| Effective volume | Dimension of tank(D*H) | Total height(H) | Diameter of inlet& outlet | Heat preservation layer | Motor power | Blending speed |
| (L) | (mm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
| 1000 | 1060*1220 | 2550 | 51 | 60 | 0.75 | 960 |
| 1500 | 1160*1500 | 2850 | 51 | 60 | 1.1 | 960 |
| 2000 | 1340*1500 | 2900 | 51 | 60 | 1.1 | 960 |
| 3000 | 1410*2000 | 3400 | 51 | 60 | 1.5 | 960 |
| 4000 | 1620*2000 | 3450 | 51 | 60 | 1.5 | 960 |
| 5000 | 1810*2000 | 3500 | 51 | 60 | 2.2 | 960 |
| 6000 | 1980*2000 | 3550 | 51 | 60 | 2.2 | 960 |
| 7000 | 1930*2440 | 4000 | 51 | 60 | 3 | 960 |
| 8000 | 2060*2440 | 4000 | 51 | 60 | 3 | 960 |
| 9000 | 2180*2440 | 4050 | 51 | 60 | 3 | 960 |
| 10000 | 2300*2440 | 4050 | 51 | 60 | 3 | 960 |
| 12000 | 2270*3000 | 4600 | 51 | 60 | 4 | 960 |
| 15000 | 2530*3000 | 4700 | 51 | 60 | 4 | 960 |
| 20000 | 2640*3660 | 5400 | 51 | 60 | 5.5 | 960 |
