Uhg Gen2 RFID Reader Support 4channel Antenna for Parking Sytem, Inventory Tracking Systems (RFID403)

Uhg Gen2 RFID Reader Support 4channel Antenna for Parking Sytem, Inventory Tracking Systems (RFID403)

US$800.00 1 Piece (MOQ)

Basic Info.

Model NO.
RFID403
Software System
WIN2000
Communication Mode
RS485
Effective Distance
8-10m
Power Supply
8-12V
Current Dissipation
600-1500mA
Operating Temp
-10 ~55celsus Degree
Transport Package
in Bulk
Specification
Rohs
Trademark
GYRFID
Origin
China
HS Code
85235210
Production Capacity
50k/Month

Product Description

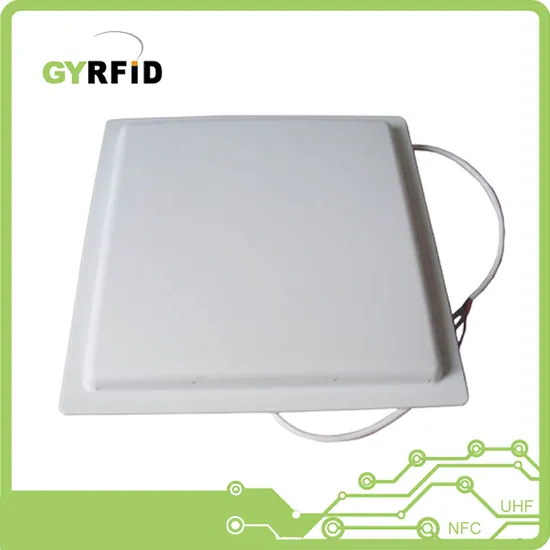

RFID403 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system
Specifications:
Self-intellectual property
Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag
902~928MHz frequency band(frequency customization optional)
FHSS or Fix Frequency transmission
RF output power up to 30dbm(adjustable)
4 SMA antenna Port
Support auto-running, interactive and trigger-activating work mode
Low power dissipation with single +9 DC power supply
Support RS232, RS485, TCPIP interface
Built-in LED, Buzzer, GPIO and Relay development.
High reliability design
Power Supply: 8-12V
Current Dissipation: 600-1500mA
Operating Temp: -10 ~55Celsus degree
Storage Temp: -20 ~75Celsus degre
Frequency: 902-928Mhz
Effective Distance: 8-10m (also depends on antenna, tag and environment)
Size: 235× 235× 57mm
Weight: 2.5KGs
Application:
Logistic management/ warehouse control / Parking system / automatic production management / library system etc
About GYRFID
GYRFID is a leading supplier of smart cards and RFID tags products for global System Integrators and distributors. It offers a wide range of products embedded with contact chip and contactless chip (LF, HF, UHF), which encapsulated into variety shapes like ISO Card, keyfobs, wristband, disc tag, laundry tag. The products are widely applied in access control, payment system, inventory control, asset tracking, industrial managements. GYRFID also welcome OEM service and personalization to create value for the sponsors.
