NBR Rubber PU Rod Hydraulic Oil Seal Making Turning CNC Lathe
Basic Info.
Model NO.
CS600
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
8 Station Turret
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
NBR Rubber PU Rod Hydraulic Oil Seals Manufacturin
Max. Seal Diameter
600mm
Delivery Time
2 Months
Color
Red White
Raw Material
Supply
Turret
8 Station Turret Vdi
Chuck
Manual Chuck
Voltage
380V
OEM
Available
MOQ
1 Set
Transport Package
Wooden Case
Specification
600mm diameter seal
Trademark
BETA
Origin
Shandong, China
Production Capacity
30 Sets Per Month
Product Description
NBR Rubber PU Rod Hydraulic Oil Seals Manufacturing Machine CNC| Specification | CS600 |
| Max. Turning diameter over bed | 650 mm |
| Max. Seal Turning diameter | 600 mm |
| Spindle | A2-6 |
| Spindle bore diameter | 65 mm |
| Max. spindle speed | 4200 r/min |
| Chuck size | 8 inch chuck |
| X-axis rapid move speed | 24 m/min |
| Z-axis rapid move speed | 24 m/min |
| X-axis travel | 300 mm |
| Z-axis travel | 450 mm |
| X-axis motor (with brake) | Siemens 2.29 kw / 11Nm |
| Z-axis motor | Siemens 2.29 kw / 11Nm |
| X-axis guide | SKF 30 |
| Z-axis guide | SKF 35 |

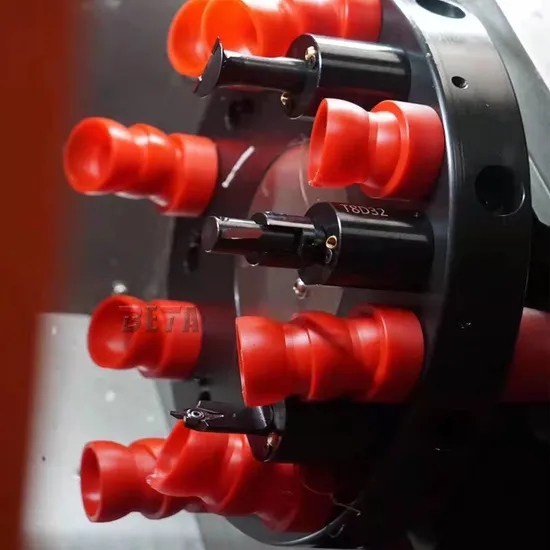

| Turret type | Horizontal 8 station VDI turret |
| X/Z axis ball leadscrew | Taiwan HIWIN SKF |
| Leadscrew bearing | Germany FAG |
| Spindle bearing | NSK |
| Electrical components | Schneider |
| Main motor power | 7.5 kw |
| CNC Controller | Siemens 828D controller |
| Motor power of suction machine | 5.5 kw |
| Machine weight | 3200 kg |
| Overall size of CNC lathe | 2750*1780*1920 mm |
| Overall size of Suction machine | 900*1100*2000 mm |
| Repeated positioning accuracy X-axis/Z-axis | 0.004mm/0.004mm |
