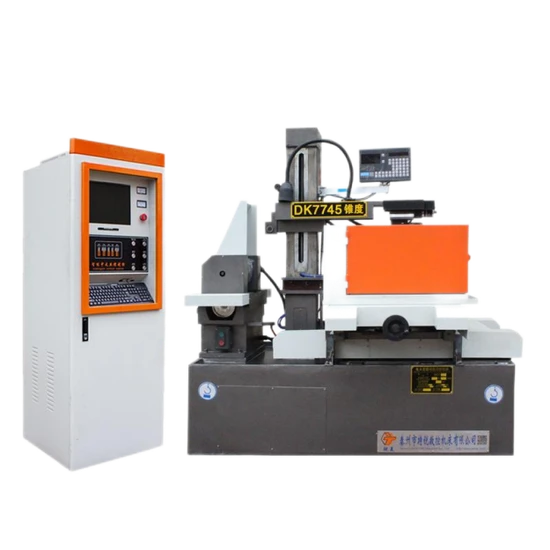

Professional Wire Cutting Machine EDM with 1-Year Core Components Warranty

Product Description

Product model	DK7720	DK7735	DK7745F	DK7745	DK7750
Worktable stroke (mm)	420*270	710*480	920*540	810*570	950*650
Table travel (mm)	200*250	350*450	450*700	450*550	500*630
Machining height (mm)	200	480	480	480	600
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	100	300	450	450	700
Main machine external dimensions (mm)	1160*810*1300	1240*1170*1400	1700*1600*1600	1600*1240*1400	1720*1680*1700

Product model	DK7750F	DK7763	DK7763F	DK7780	DK77100
Worktable stroke (mm)	1140*650	1140*750	1350*750	1350*985	1700*1170
Table travel (mm)	500*800	630*800	630*1000	800*1000	1000*1200
Machining height (mm)	400/600	600	600/800	600	1000
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	700	1000	1000	2000	2600
Main machine external dimensions (mm)	2000*1900*1700	2100*1940*1780	2300*2200*1800	2600*2400*1800	3000*2800*2500

Discover Our Company Profile

Jiangsu Sanlin Technology Equipment Co., Ltd. Jiangsu Sanlin Technology Equipment Co., Ltd. stands as a beacon of innovation in the high-tech realm, masterfully blending production, research and development, as well as the sales of cutting-edge CNC machinery and equipment. With a legacy spanning several decades in the equipment industry, we proudly offer an extensive portfolio: vertical machining centers, high-speed machines, gantry machining centers, drilling and tapping centers, engraving and milling machines, gantry engraving and milling machines, medium wire cutting machines, fast wire cutting machines, small hole machines, sanding machines, and much more. Our unwavering commitment to superior quality and intricate craftsmanship has earned us the admiration and trust of our valued clientele. Our sophisticated equipment finds application across pivotal manufacturing sectors, including automotive, aerospace, national defense, medical, food machinery, rail transit, and metal molds. We extend our reach beyond national borders, with products gracing markets across Southeast Asia, Europe, and Africa. At Sanlin, our pursuit of excellence is relentless, as we endeavor to deliver outstanding products to our users. We warmly invite our esteemed customers and partners to explore collaborative opportunities with us!
Frequently Asked Questions
A: We are indeed the manufacturer, and we enthusiastically welcome you to visit our factory to witness our operations firsthand. A: To select the ideal machine, start by aligning the worktable travel and cutting thickness with your workpiece dimensions to identify a suitable model. Next, assess if the precision and surface finish meet your specifications; our TRS series machines boast superior precision and exceptional finishes. A: Absolutely, please inform us of your required voltage, and we will make the necessary adjustments. A: We offer free replacement of damaged parts within the warranty period, and post-warranty replacements are available at cost price. Should any issues arise, we promise swift solutions, utilizing video demonstrations or other effective methods.Q: Are you a manufacturer or distributor? Q: How do I select the right machine for my needs? Q: Can you adjust the machine's voltage to match our country's specifications, such as three-phase 220V or single-phase 220V, when the default is three-phase 380V? Q: What type of after-sales service can we expect?
