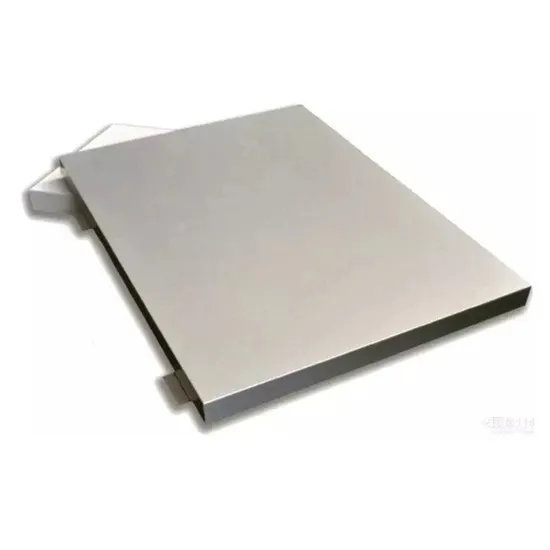

Lork R56401/AMS 4905/AMS 4907 Alloy Sheet for Rocket Engine Casing Ti-6al-4V Titanium Alloy Plate

Product Description

Product Description

Introduction Lork Group specializes in the supply of Grade 5 Ti 6Al 4V ELI alloy raw materials and processing, alloys, stainless steel, metal quality development, welcome your inquiries
Ti 6Al-4V offers a combination of high strength, light weight, formability and corrosion resistance which have made it the most commonly used titanium alloy. It is an alpha+beta alloy that is heat treatable to achieve moderate increases in strength and is recommended for use at service temperatures up to approximately 660°F (350°C). Ti 6Al-4V may be considered in any application where a combination of high strength at low to moderate temperatures, light weight and excellent corrosion resistance are required.
Titanium Grade 5 Ti 6Al 4V Alloy Application Industries
Fasteners Aircraft turbines Engine components Aerospace fasteners Marine applications Sporting goods Pumps and valves Orthopedic implants Surgical instruments Aircraft structural components High-performance automotive parts Grade 5 Ti 6Al 4V Titanium Alloy Chemical Composition
The chemical composition of grade 5 Ti 6Al 4V ELI alloy is outlined in the following table.

Element	Content (%)
Titanium, Ti	90.00
Aluminum, Al	6.00
Vanadium, V	4.00
Carbon, C	≤ 0.10
Oxygen, O	≤ 0.20
Nitrogen, N	≤ 0.05
Hydrogen, H	≤ 0.0125
Iron, Fe	≤ 0.3%

Grade 5 Ti 6Al 4VTitanium Alloy Mechanical PropertiesThe following table shows mechanical properties of grade 5 Ti 6Al 4V alloy.

Properties	Metric	Imperial
Tensile Strength, Ultimate	≥895 MPa	≥130000 psi
Tensile Strength, Yield	≥828 MPa	≥120000 psi
Elongation at Break	≥10%	≥10%
Modulus of Elasticity	95.0 - 111 GPa	13800 - 16100 ksi
Shear Modulus	41.0 - 45.0 GPa	5950 - 6530 ksi

Grade 5 Ti 6Al 4V Titanium Alloy Physical Properties The physical properties of grade 5 Ti 6Al 4V alloy are tabulated below.

Properties	Metric	Imperial
Density	4.43 g/cc	0.16 lbs/in3
Melting Point	1604-1660°C	2920-3020°F
Shear Modulus	43988 MPa	6.38 x 106 psi
Modulus of Elasticity	113763 MPa	20885 psi
Specific Heat	0.5263 Joules/g°C	0.126 BTU/lb-°F
Mean Coefficient of Thermal Expansion	8.6 µm/m-°C	4.78 µin/in-°F
Thermal Conductivity	6.7 W/m-K	46.5 BTU-in/hr-ft²-°F

Grade 5 Ti 6Al 4V Titanium Alloy Thermal Properties The thermal properties of grade 5 Ti 6Al 4V alloy are tabulated below.

Properties	Metric	Imperial
Thermal expansion co-efficient (@20-100°C/68-212°F)	8.60 µm/m°C	4.78 µin/in°F
Thermal conductivity	6.70 W/mK	46.5 BTU in/hr.ft².°F

Equivalent materials to grade 5 Ti 6Al 4V alloy are as follows: A5.16 (ERTi-5) (Weld Wire) AMS 4905 (Plate Annealed) AMS 4930 (Bar Wire Forgings Billet Annealed) AMS 4956 (Weld Filler Metal Wire) AMS 4998 (Powder) ASTM F620 (Forgings for Surgical Implants) AMS 4907 (Sheet Strip Plate Annealed) AMS 4931 (Bar Wire Forgings Billet) AMS 4996 (Billet) ASTM F136 (Wrought Alloy for Surgical Implants) AWS A5.16-70 (Weld Filler Metal Wire and Rod) Characteristics of Ti-6AL-4V The most common market for 6AL-4V is aerospace. Lightweight grade 5 titanium is well suited for applications such as compressor blades, discs, and rings for jet engines; airframe components; pressure vessels; rocket engine cases; helicopter rotor hubs and critical forgings requiring high strength-to-weight ratios. Ti-6AL-4V titanium round bar stock is also age hardenable by heat treatment to achieve even higher strengths. This biocompatible material is also well suited for medical implants. Its mechanical and physical properties allow good capacity for titanium to join with bones and other tissue.
Working with Ti-6AL-4V Tooling should consist of tungsten carbide designations C1-C4 or cobalt type high speed tools. Generally, machining characteristics are similar to those of austenitic stainless steels. Ti 6AL-4v Grade 5 Titanium bar stock can be machined using slow speeds, high feed rates, rigid tooling, and flooding the workpiece with non-chlorinated cutting fluid.
Detection

Processing
Packaging & Shipping

Company Profile

FAQ
Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .
Q2: Can I have free sample before making orders?
A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.
Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .
Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .
Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .
