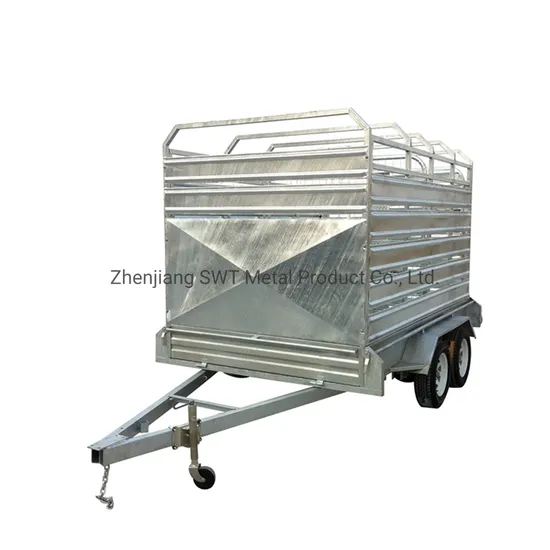

Cattle Stake Truck Trailer with Tandem Axle (SWT-CTT95)
| US$1,000.00 | 14 SET (MOQ) |
Basic Info.
Model NO.
SWT-CTT95
Loading Weight
3T
Shape
Flatbed
Self-dumping
Self-dumping
ABS
Without ABS
Security Initiative Protection Device
With Security Initiative Protection Device
Condition
New
Size
2700X1525
Drawbar
100X50X3mm
Chassis
50X50X3mm
Floor
2.5mm Checker Plate Floor
Axle
40X40 Solid Square Disc Braked Axle
Suspension
60X6X6mm Heavy Duty Rack Roller Suspenison
Jockey Wheel
6inch Top Wind Jockey Wheel
Light
LED Light Sets with 7pin Plug
Surface
Hot Dipped Galvanized
Capacity
2000kgs
Transport Package
Flat Packing
Trademark
SWT
Origin
Zhenjiang City. Jiangsu Province
Production Capacity
500sets/Month
Product Description
9x5 CATTLE CRATE| Size | Model no | Overall size | Deck size | Spring | Wheel | GVW |
| 8x5ft | SWT-CCT85 | 4150X2025X2600mm | 2440x1525X300mm | 7leafs | 195R15C | 3500kgs |
| 9x5ft | SWT-CCT95 | 4410X2025X2600mm | 2700x1525X300mm | 7leafs | 195R15C | 3500kgs |
| 10x5ft | SWT-CCT105 | 4760X2025X2600mm | 3050x1525X300mm | 7leafs | 195R15C | 3500kgs |
| 12x6ft | SWT-CCT126 | 5370X2025X2600mm | 3660x1830X300mm | 7leafs | 195R15C | 3500kgs |
Description For 9x5 Cattle Crate Trailer | |
STANDARD PARTS | SPECIFICATION |
Drawbar | 100x50x5mm RHS. 1600mm long with 2x12mm safety chains (AS4177 stamp) |
Chassis | 70X50x4mm RHS (Not angle) |
Floor & Side | 2.5mm Checker plate, fully welded on the chassis |
Axle | 50x50mm Solid square bearing, 12' electric brake on 4 wheels |
Spring | 60x8mmx7leafs rocker roller suspension (not 5leafs or 6leafs cheap and light spring) |
Wheel | 195R15C wheel with 15nch white paint rim |
Jockey wheel | 6inch top wind heavy duty jockey wheel. with E-mark and DOT certificate |
Coupler | 50mm AU standard coupling, 1 7/8 NZ standard coupling, EU standard coupling |
Lights | LED Tail-Lights with 7pin plug and 7 core wiring. light with E-mark and DOT certificate |
Surface Treatment | Hot dipped galvanized |
CRATE DETAILS | |
Crate Panel | 1.5mm steel plate |
Crate Height | 1800mm |
Crate Open Way | 3 way door system: Drop, Slide & Swing |
PAYMENT TERM&DELIVERY TIME
30% deposit. 70%balance will be paid after we send copy of B/L.
28 days after we get deposit.
WARRANTY
1year for trailer parts.
12 years for trailer box and drawbar and cage.
12years for trailer hot dipped galvanized.
