Jpt Mopa Pulse Fiber Handheld Laser Cleaner Machine Removal Laser Cleaning Machine Paint Rust Removal Ship Repairment

Product Description

Portable Pulse Laser Rust Removal 50W 100W 200W Fiber Laser Cleaning Machine

Introduction:
FL-C50S/C100S/C200S Laser rust removal equipment is a suitcase-type machine. The outlook is the same as a travel case, which is very easy to take along and move. Also, the best demo machine to fly with you on airplane.
We also approved adding a Phone APP control system.
It can remove the grease, dirt, coating, paint, rust, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material.
Features:
1. Laser cleaning has no grinding, non-contact, no thermal effect, and is suitable for various materials, etc.
2. Rapid, clean and accurate cleaning;
3. No damage to the substrate;
4. High cleaning precision, strong control ability;
5. Can be used for a long time, low operating costs;
6. Light to carry on the shoulder for outside high position cleaning work;
7. Environmentally friendly, no pollution.
Applications:
Metal workpiece laser de-rusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, etc.

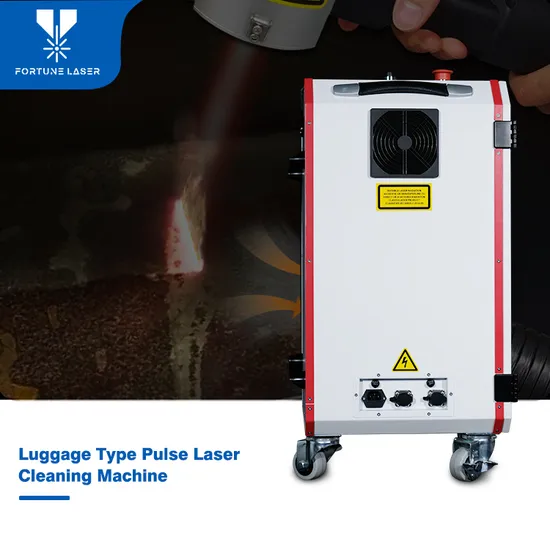

Suitcase type is same as a travel case, very easy to take along and move.

Laser head, lightweight to carry, easy to operate, output different share laser beam, like wave, circle and square.

Machine Parameters

Model	RL-C200S	RL-C100S	RL-C50S
Laser source	Fiber	Fiber	Fiber
Laser Power	200W	100W	50W
Fiber cable length	2-5M	2-5M	1.5-3M
Laser Wavelength	1064nm	1064nm	1064nm
Pulse Energy	1.5 mJ	1.5 mJ	1mJ
Pulse frequency	1-4000KHz	1-4000KHz	1-1000KHz
Scanning speed	0-7000mm/s	0-7000mm/s	0-7000mm/s
Cooling	Air cooling	Air cooling	Air cooling
Dimension	600*350*800mm	500*300*650 mm	300*160*450mm
Net Weight	60KG	33KG	18KG
G.W.	87KG	37KG	21KG
Beamwidth	10-170mm	10-100mm	10-70mm
Optional	Manual/Auto	Manual	Manual
Cleaning Head	Dual Axis	Dual / Single Axis	Single Axis
Temperature	5-40 ºC	5-40 ºC	5-40 ºC
Voltage	Single Phase AC 220V,50/60HZ	Single Phase AC 220V, 50/60HZ	Single Phase AC 220V, 50/60HZ
