Hot Sale CNC Vertical Lathe Double Column Vertical Lathe Machine
Basic Info.
Model NO.
CK5232
Type
Vertical Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
CNC Double Column Vertical Lathe
Max.Cutting Diameter
3200mm
Max.Cutting Height
1600/2000/2500mm
Max.Loading Weight
10/16/20t
Max.Worktable Torque
63000n. M
Worktable Speed Range
2-63rpm
Worktable Step Range
4 Gears Shift Stepless / 2 Gears Shift Stepless
Right Tool Post Cutting Force
35kn
Left Tool Post Cutting Force
28kn
Tool Post Horizontal Travel
1700mm
Tool Post Vertical Travel
1000/1250
Main Motor
55kw
Tool Post Rapid Speed
2000mm/Min
Crossbeam Speed
380mm/Min
Transport Package
Wooden Cases
Specification
6310*4950*6245mm
Trademark
HAIDI
Origin
China
HS Code
8458990000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
661.00cm * 525.00cm * 655.00cm
Package Gross Weight
22000.000kg
Product Description

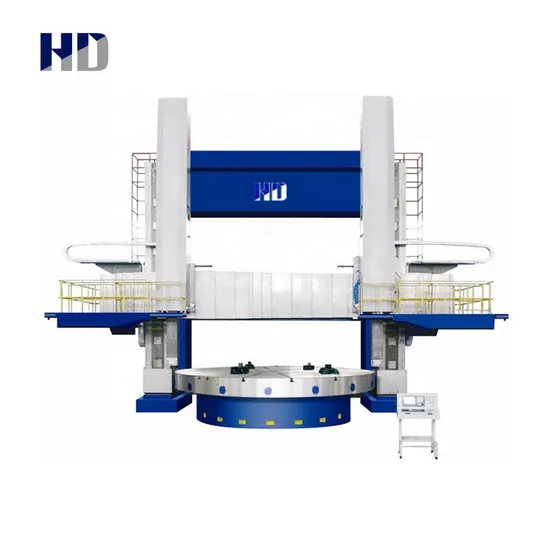

Product Picture
Specification Parameter
| Specification | Unit | CK5225 | CK5232 | CK5235 | CK5240 | CK5250 | CK5263 |
| Max.Cutting Diameter | mm | 2500 | 3200 | 3500 | 4000 | 5000 | 6300 |
| Max.Cutting Height | mm | 1600/2000/2500 | 1600/2000/2500 | 1600/2000/2500 | 1600/2000/2500 | 2000/2500/3150 | 3150/4000 |
| Worktable Diameter | mm | 2250 | 2830 | 2830 | 2830/3200/3600 | 4000/5000 | 4500/5000/5700 |
| Max.Loading Weight | T | 10/16/20 | 10/16/20 | 10/16/20 | 20/32 | 32/50 | 60/80 |
| Max.Worktable Torque | N. m | 63000 | 63000 | 63000 | 63000 | 100000 | 100000/150000 |
| Worktable Speed Range | rpm | 2-63 | 2-63 | 2-63 | 0.5-40 | 0.5-40 | 0.5-38 |
| Worktable Step range | 4 Gears Shift Stepless / 2 Gears Shift Stepless | ||||||
| Right Tool Post Cutting Force | Kn | 35 | 35 | 35 | 35 | 35/50 | 50/80 |
| Left Tool Post Cutting Force | Kn | 28 | 28 | 28 | 28 | 28/40 | 40/70 |
| Tool Post Horizontal Travel | mm | 1400 | 1700 | 1900 | 2150 | 2765 | 3450 |
| Right Tool Post Feed Range and Steps | mm/min | 0-500 ( Servo Stepless ) | |||||
| Tool Post Vertical Travel | mm | 1000/1250/1400 | 1000/1250 | 1000/1250 | 1000/1400 | 1250/1400/1600 | 1600/2000 |
| Main Motor | kw | 55 | 55 | 55 | 55 | AC55/75 | AC75/90/110 |
| Tool Post Rapid Speed | mm/min | 2000 | |||||
| Crossbeam Speed | mm/min | 380 | |||||
| Machining Precision | -- | IT7 | |||||
| Positioning Precision | mm | 0.03 | |||||
| Repositioning Accuracy | mm | 0.015 | |||||
| Machine Weight | t | 32/34/36 | 37/39/41 | 39/41/43 | 43/45/48 | 60/65/70 | 118/127/178 |
| Overall Dimension(L*W*H) | mm | 5180*4700*4800 | 6310*4950*6245 | 6610*5100*6245 | 6900*5200*6600 | 9200*5800*7700 | 11500*7500*9300 |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Factory Picture
Exhibition Photos
Certificate
Packing&Shipping
FAQ
