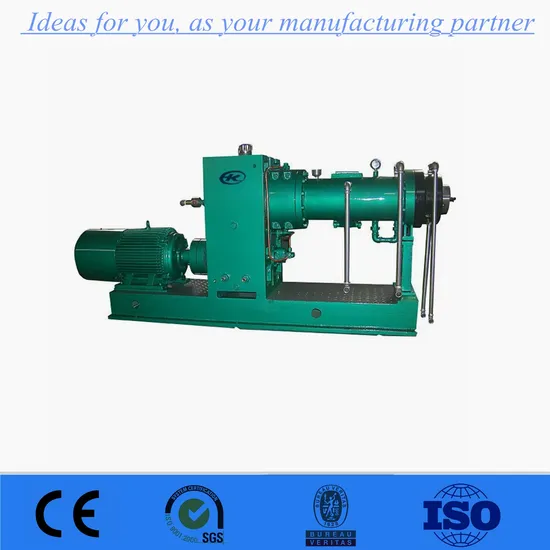

Single Screw Cold Feeding Vacuum Type Rubber Extrusion- Rubber Hose Production Line

Product Description

Single Screw Cold Feeding Vacuum Type Rubber Extrusion- Rubber Hose Production Line
Product Description Normal cold feeding extruder is used in China rubber industry in recent years. Compared with common cold feed rubber extruder. It has high production capacity, low rubber raw material temperature, low energy consumption, good mixing effect, even plasticizing. The machine is widely used in rubber hose, inner tube, rubber strip, inner linear, rubber seal strip etc. Extruding. Also can be used to supply rubber for small size calender.
The equipment has high production capacity, mix temperature low, low power consumption, good quality, the characteristic of mixed plasticized evenly, with a screw can be evenly. Glue extruding a variety of mouth and stable, and can be widely used in the rubber hose, tube, tape, lining, sealing strip, wire and cable, sheath, sidewall, zikou glue extrusion.
Products have XJ-65, XJ-90, XJ-120, XJ-150, XJ-200 models to meet the needs of different users.

Product Parameters Hot feed extruder

Type	XJ-65	XJ-115B	XJ-120	XJ-150	XJ-200
Form of screw	Double-head equaldepth convergent type	Double-head convergent type	Double-head convergent type	Double-head unequaldepth convergent type	Double-head equaldepth convergent type
Screw diameter(mm)	65	115	120	150	200
Length-diameter ratio of screw	4	4.8	4.6	4.43	4.35
Compression ratio		1.3		1.34
Rotary speed of ratio(r/min)	Electromagnetic speed 7.5kw	Electromagnetic speed 22kw	Electromagnetic speed 22kw	Frequency control 55kw/motor	Frequency control 75kw/motor commutator 25-75
Production capacity(kg/h)	50-80	100-420	100-450	700-1200	1500-2200
Steam pressure(Mpa)	0.2-0.3	0.4-0.6	0.2-0.4	0.6	0.6-0.8
Steam pressure(Mpa)	0.2-0.3	0.2-0.3	0.2-0.4	0.2-0.3	0.2-0.3
Overall size(mm)	1750*550*1100	2390*760*1450	2427*750*1330	3411*814*1470	4564*1800*1750

Cold feed extruder

Type	XWD-50	XWD-65	XWD-75	XWD-90	XWD-120
Screw diameter(mm)	Φ50	Φ65	Φ75	Φ90	Φ120
Length-diameter ratio of screw	12:1	12:1	14:1	12:1	16:1
Revolving speed of screw	7-73	8-75	6-60	7-67	5-50
Max. Production capacity(kg/h)	60	120	180	400	1000
Driving power(kw)	11	30	37	55	110
Weight(kg)	1100	1650	1700	2500	5000
Overall size(mm)	1550*1050*1500	1900*800*1500	2340*1150*1250	2440*1000*1450	3400*1100*1100
