Small Inner Diameter Parallel Fireworks Paper Tube Making Equipment

Product Description

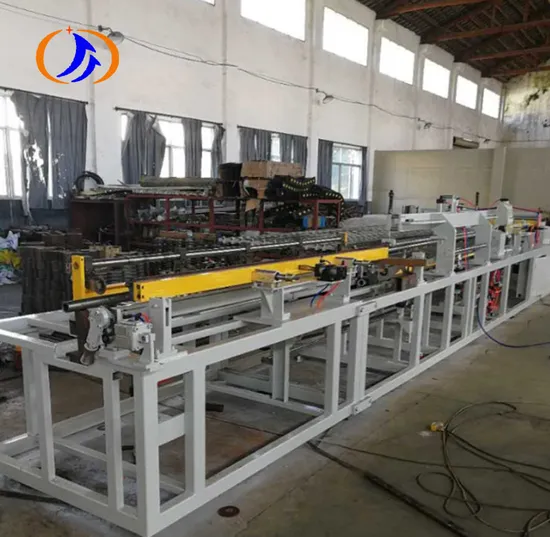

YDF-16-50 Parallel paper tube making machine

Product Description
Parallel Paper drum Making Machine for paper barrels is used to manufacture cylindrical Fibre Drums using Kraft Board. These drums are used to pack bulk drugs, chemicals, dyes, pharmaceuticals, engineering, consumer goods, adhesives etc. In Textile Mills the fibres are also transported through these drums. Fibre Drums are the most preferred option wherever there is a need for a cost-effective, light weight but strong packing material. This machine is used to manufacture spirally wound paper tubes using various plies and glue.

Max. Paper tube length (The width of reel paper)	1020/1220/1520mm
Max. Diameter of reel paper	1300mm
Paper tube inner diameter	16-50mm
Paper tube thickness	2-10mm
Applicable paper grammage	200-550gsm
Production speed	17-20pcs/min
Dimension	6300 x 1550x1400mm
Total motor powe	7KW

1, Directly make the jumbo roll into paper tube and cut tubes into needed length,convenient for regulating tubes' length.

2, Automatic paper edge grinding device with the machine,benefit for sealing paper tube's outer circle.

3, Adopt scraping glue way to glue the paper, use scraping plate to scrape the glue,uniformly glue the paper, no glue adhere at the outer cycle of paper tube.

4, Adopt liquid level control, automatic pump the glue.

5, Adopt the workmanship of waxing inner circle of paper tube, reduce the resistance of discharging tube and keep no glue at the inner circle of the paper tube.

6, The glue vessel is adopted stainless steel design,acid corrosion.

7, Electric components and pneumatic components use importing famous brand with high quality.

8, Reeling tube's motor, conveying paper's motor and discharging tube's motor are all adopted servo motor with high precise and fast speed.

9, Every action adopts numerical control, highly automatic to let the machine run stably and keep high production capacity.

10, Adopt LCD touch screen design, easy to operate and set the parameter, convenient for finding malfunction.
Our Services
1.The business contact on both sides will reply within 2 hours .
2.During warranty period, the company provide the relevant technical services for free,Such as equipment quality problem resulting from the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.
3.After the expiration of the warranty, our company provide customers with a lifelong technical service and spare parts with preferential price and efficient manner over a long period of time.
Company Information Our company has several paper machine manufacturing enterprises and keeps a long-term and stable cooperation with the first-class large paper machinery manufacturers in the world.Our company can provide for global customers with paper tube machine,tissue paper machine, office supplies paper machine, packaging paper machine, white board paper machine with different types,high quality,energy conservation and environmental protection and pulping equipment, paper processing equipment and various accessories, spare parts,consumables.

FAQ 1.How to install and maintain the machine?
A: Firstly,we will provide the installation guild with the machine for your reference.
Secondly,our company is responsible for training production workers for you, ensuring
that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
A: During the warranty,Our company can replace the accessories for free .Out of
warranty,we can provide them at the preferable price .In fact,the wearing parts are
standard parts that you could get it in your country at your convenience.
3.Why would I choose your company?
A: Firstly,Our company has rich paper machine design and experience, and is the collection of paper making machinery research, design, manufacture, installation,
commissioning and service, becoming one of the multi-functional enterprise.
Secondly,our company could provide the marvelous after-sale services, which is
responsible for all installation and debugging, and training the production workers ,
ensuring that the workers will be independent operation.
Thirdly,our company persist in the slogan "Customer's satisfaction is our standing
pursuit".
Warm Tips
1.Before installation,you should check that equipment's model and dimension are all right with the parts complete d and level remaining.
2.Before the debugging of installation,Checking each part is correct, lubrication supply normal.water, electricity values reaching the standard.
3.During Operation,you should pay attention to keep daily inspection, cleaning and oiling.and then examine and repair regularly.
