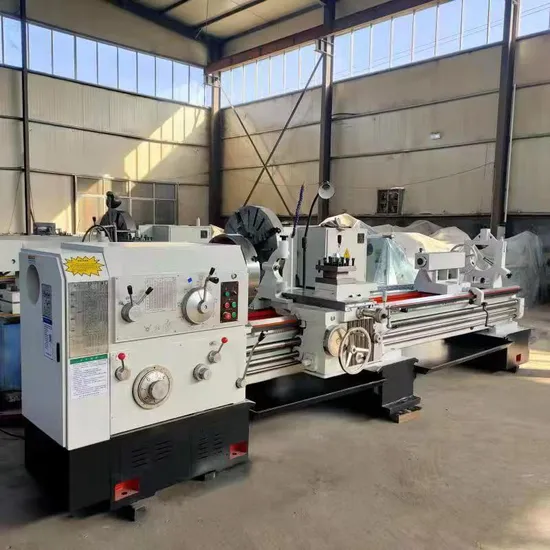

Manual Type Lathe Machine for Metal Turning Milling and Drilling

Product Description

Standard Configurations

Standard configuration :3 jaws manual chuck and chuck protection
Box way type
You can option 4 jaws manual chuck

Optional configutaion :Grating ruler
4 station 25X25 Turret
Feeding box

Power Feed
Spindle box
Product Parameters

Specifications		CA6140 CA6140B	CA6240 CA6240B	CA6150 CA6150B CA6150C	CA6250 CA6250B CA6250C	CA6161 CA6161B CA6161C	CA6261 CA6261B CA6261C	CA6166 CA6166B CA6166C	CA6266 CA6266B CA6266C	CA6180	CA6280
										CA6180B	CA6280B
										CA6180C	CA6280C
Max. Swing over bed		400mm		500mm		610mm		660mm		800
Max. Swing over carriage		210mm		300mm		370mm		400mm		540
Max. Swing in gap		--	630mm	--	720mm	--	830mm	--	880mm	--	1020mm
Effective gap length		--	210mm	--	210mm	--	210mm	--	210mm	--	210mm
Max. Length of work piece		750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
Width of bed		400mm
Section of turning tool		25X25mm
Spindle	Spindle speeds	10-1400rpm/16-1400rpm(24steps)
	Hole through	52mm. (80mm). [105mm]
	Spindle
	Spindle taper	MT6(Φ90 1: 20)[Φ113 1: 20]
Feed	Number of feeds	64 kinds(for each)
	Range of metric threads	1-192mm (44kinds)
	Range of inch threads	2-24tpi (21kinds)
	Range of module threads	0.25-48(Module39kinds)
	Range of pitch threads	1-96DP(37kinds)
Tailstock	Max. Tailstock	150mm
	Spindle travel
	Tailstock spindle diameter	75mm
	Taper of tailstock spindle	MT5
	Center hole
Main motor		7.5KW(10HP)
Packing dimensions (L*W*Hmm)	Overall dimensions for750mm	2550X1140X1750		2550X1140X1750		2550X1140X1750		2550X1140X1750		2550X1140X1750
	Overall dimensions for1000mm	2700X1140X1750		2700X1140X1750		2700X1140X1750		2700X1140X1750		2700X1140X1750
	Overall dimensions for1500mm	3200X1140X1750		3200X1140X1750		3200X1140X1750		3200X1140X1750		3200X1140X1750
	Overall dimensions for2000mm	3700X1140X1750		3700X1140X1750		3700X1140X1750		3700X1140X1750		3700X1140X1750
	Overall dimensions for2200mm	4030X1140X1750		4030X1140X1750		4030X1140X1750		4030X1140X1750		4030X1140X1750
	Overall dimensions for3000mm	4850X1140X1750		4850X1140X1750		4850X1140X1750		4850X1140X1750		4850X1140X1750
	Overall dimensions for4000mm	5800X1140X1750		5800X1140X1750		5800X1140X1750		5800X1140X1750		5800X1140X1750
Weight (kg)	Length	G. W N. W.		G. W N. W.		G. W N. W.		G. W N. W.		G. W N. W.
	Weight for 750mm	2100 1990		2170 2061		2300 2180		2380 2260		2520 2400
	Weight for 1000mm	2190 2070		2260 2140		2380 2250		2570 2450		2720 2560
	Weight for 1500mm	2350 2220		2420 2290		2577 2437		2810 2640		2980 2800
	Weight for 2000mm	2720 2570		2790 2640		2940 2787		3050 2880		3260 3087
	Weight for 2200mm	2800 2600		2940 2790		3120 2970		3390 3180		3490 3287
	Weight for 3000mm	3300 3200		3450 3300		3600 3450		3930 3687		4200 3887
	Weight for 4000mm	3500 3400		3750 3600		3950 3800		4580 4200		4850 4500

We are committed to the R & D and manufacturing of high-end precision machine tools. We have an independent R & D team in Taipei More than 20 years of rich technical leaders, the company draws on the experience of machine tool structure of world-famous enterprises such as Japan and Germany, large-scale gantry, large scale five sides,small vertical plus,vertical horizontal integration machine, high-speed machine,turn milling compound machine and other processing equipment have been successfully applied in automobile mold, precision parts processing, aerospace ship, wind power tube board and other fields are loved by the majority of users. Our products are compatible in rigidity and high precision, it is suitable for various needs of more users.
The company has set up a continental factory in Xiyi high tech Zone,Jiangsu Province, which is located in a 270000 squre meter industrial Park, with a large dust-free assembly workshop and advanced testing equipment, And equipped with a first-class R & D room,reduce production costs, more price advantage in the market competition.
The group company has mastered the manufacturing technology of super-large high-precision gantry with a stroke of 16.5 meters and 14 meters. The super-large gantry equipment is more rapid, energy-saving, flexible, reliable, compatible with rigidity and high precision, and is more suitable for the needs of users.
Taiwan Dawei Machine Tool Group has a good user base in the international industrial belt of Asia,Europe,South America and more than 1,300 sets of products are sold. The group has became a qualified supplier of BYD automobiles in 2021, The gantry equipments widely used in Shenzhen BYD, jiangxi Fuzhou BYD, Chongqing BYD and other factories. Cases like this are just one of many users of Dawei products.
1: What is the scale of your company?
We are China famours brand, we have cooperate with BYD, CRCC High-tech Equipment, AICC , but don't sorry , We treat every customer equally, whether you are a big customer or a small customer, you are all our God, we will give you the most satisfactory service and best price .
2.How is your price ?
Due to the fierce competition in the market today, each of our machines is sold at lowest price, so that you can enjoy the best quality and enjoy the most affordable price.
3. How about youe after-sales service ?
We have a professional after-sales team, 24 hours to provide you with free after-sales service, according to your needs to provide you with online or offline services.
4.How much deposit should I pay to order the machine?
Standard models we can order machines for free in advance.
More information , please contact me .
