Taijia YFD-300 ULTRASONIC TESTING MACHINE PRICE ULTRASONIC Portable ut flaw detector ultrasonic

Product Description

Product Description

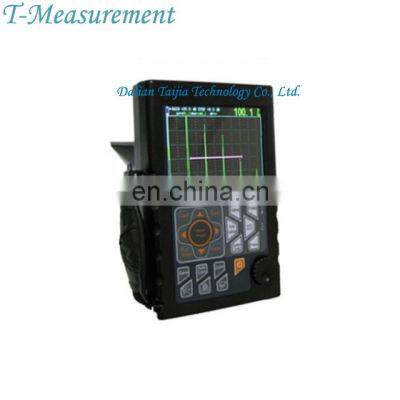

Product DescriptionUltrasonic Method portable ultrasonic flaw detector YFD300YFD300 ultrasonic flaw detector is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a work piece without destruction. SpecificationBasic information for ultrasonic flaw detectorRange of scanning (mm)0~10000D-delay (us)-20~+3400P-delay0.0~99.99MTLVEL(m/s)1000~15000Sensitivity Leavings>=62 dBDynamic range>=34dBFrequency Range (MHz)0.5~20 BatteryLi battery 7.4V,4800mAhPower adaptorInput 100V~240V/50Hz~60Hz Output 9VDC/1.5AWorking temperature-20C~50CWorking humidity20%~90%Port typeBNC or LEMO 001Working modeSingle probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)Detailed ImagesFeaturesFeatures1.Automated calibration of transducer Zero Offset and/or Velocity ; 2.Automated gain,Peak Hold and Peak Memory; 3.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Diameter); 4.Automated switch three staff gauge ((Depth d,level p,distance s); 5.500 independence setup, any criterion can be input freely, we can work in the scene without test block; 6.Big memory of 1000 A graph. 7.Gate and DAC alarm;Acoustic-Optical alarm; 8.RS232/USB port,communication with pc is easy; 9.The embeded software can be online updated; 10.Li battery, continue working time up to 10 hours; 11.Display freeze; 12.Automated echo degree; 13.Angles and K-value; 14.Lock and unlock function of system parameters; 15.AWS D1.1;16.Dormancy and screen savers; 17.Electronic clock calendar ; 18.Automated make video of test process and play; Connect the Upan,the length of video is unlimited19.Two gates setting and alarm indication; 20.High-speed capture and very low noise; 21.DAC,AVG,TCG,B Scan ; Solid metal housing (IP65); 22.Automated calculate the size of the flaw with w ide bottom type in AVG function.23.6dB DAC functions;24.Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles; 25.Powerful pc software and reports can be export to excel;Packing & DeliveryCome with carrying case,outer package is carton case.ultrasonic flaw detectorOur CompanyDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Trade terms 1. 18 Month's Warranty. 2. Delivery time:3-7 working days after payments received 3. MOQ:1 set. 4. Service expresscompany:TNT/DHL/FedEX. 5. We accept T/T, Western Union, PayPal & Secure Payment. NO.5 Shanshui Yuan, High-tech Industrial ZoneDalian, China 116033 E-mail:commercial at TEL:86-411-39685079 WhatsApp/WeChat:+8618842866177web:/
