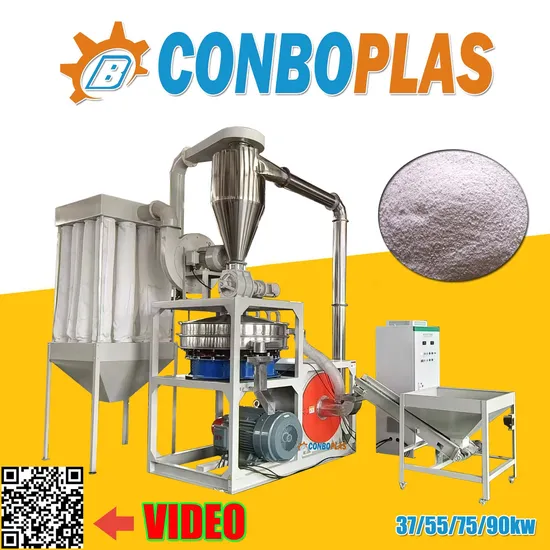

Hot Sale Plastic PVC Grinder Miller Pulverizer Machine

Hot Sale Plastic PVC Grinder Miller Pulverizer Machine

US$5,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SMW-500
Service Life
≥15 Years
Certification
CE, ISO
Voltage
380V
Structure
Vertical
Output
150-1000kg/Hr
Blade Material
D2 Steel or SKD-11
Motor
Siemens
Speed Control
by Inverter
Inverter Brand
ABB
Cooling
by Water
Milling Method
by Millstone or Disk Blade
Material of Vibrating Sieve
Stainless Steel
Sieve Diameter
10-100 Mesh
Lead Time
About 30 Days
Transport Package
Plastic Film and Wooden Box
Specification
upto 1000kg/h
Trademark
CONBOPLAS
Origin
Zhangjiagang
HS Code
84778000
Production Capacity
30 Sets Per Month

Product Description

Product Description
This machine can be used for powder processing of polyethlene (PE), polyvinylchloride (PVC), polypropylene (PP), polystyrene (PS), ABS, nylon and other materials.
Features
1. The new disc design is used, high-yield,strong resistance and the life of grinding disc is double the ordinary.
2. The use of newly designed professional bearings, and reached a high rotation rate, at the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
3. Installation and maintenance easy, open the door to cover clean-up.
4. Milling process of the whole seal, without dust leakage.
5. Full automated, automatic feeding, the materials and sorting.
6. Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning.
7. The host used the water and wind double cooling systerm, rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamberas soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.
Product Parameters
Item/Model SMW-500 SMW-600 SMW-800
1. Blade diameter 483±1mm 583±1mm 783±1mm
2. Power Main motor 37kw 55kw 75kw
Blower 3kw 4kw 11kw
3. Ouput size 10-100 mesh
140μm-1400μm
10-100 mesh
140μm-1400μm
10-100 mesh
140μm-1400μm
4. Capacity PVC: around 250kg/h PVC: around 350kg/h PVC: 400-800kg/h
Remarks: all the information above is only for your reference; please gather the exact data by contacting us. Detailed Photos
Electric Components
Business Cooperation
PLEASE FEEL FREE TO CONTACT US FOR FURTHER INFORMATION. THANKS!
