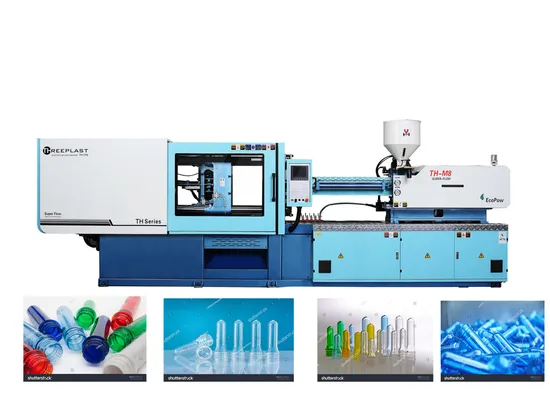

Pet Preform Injection Molding Machine Injection Machine for Pet Bottles

Product Description

Characteristics
This Servo drive machine is designed For your Universal Processing applications this series of machinery is fast ,accurate and has Excellent Repeatability .This THREEPLAST injection molding machine can help you reach a maximum producibility on a wide range of materials . with a Nitrided +Alloy screw & barrel . wear-resistant screw tip. High strength tie-bars and rigid platens . it all adds up to a unit ,that will stay the course ,giving consistently high quality and output with a wide range of materials and with the most complex of molds .

TH160
Injection Unit		A	B	C
Screw Diameter	In	1.65	1.77	1.97
	mm	42	45	50
Screw L/D ration	L/D	22	20	18.5
Shot volume	in3	19.03	21.84	26.96
	Cm3	312	358	442
Shot weight (PS)	g	284	326	402
	oz	10.02	11.50	14.18
Injection Pressure	psi	29435	25665	20735
	Mpa	203	177	143
Max screw speed	rpm	240
Clamping Unit
Clamping Force	KN / T	1600 / 160
	U.S.ton	176
Opening stroke	In	17.13
	mm	435
Tie-bars distance	In	18.30 X 18.30
	mm	465 X 465
Max.mold height	In	21.65
	mm	550
Min.mold height	In	7.87
	mm	200
Ejector Stroke	In	5.31
	mm	135
Ejector force	KN	46
	U.S. ton	5.06
General
Pump power	Kw	22
	HP	29.48
Heating capacity	Kw	9.9
	HP	13.27
Oil tank Capacity	Litre	300
Machine Dimensions	In	200.79 X 55.12 X 86.61
	m	5.10 X 1.40 X 2.20
Machine weight	Kg	5300
	Lbs	11660

15+ Years Manufacturing Experience
Our company puts the needs of customers in the first place, and the stable development of the company cannot be separated from the support of all customers and partners as well as the joint efforts of employees.We are committed to let more enterprises use our injection molding machines, so that they can save costs, improve efficiency, and achieve win-win cooperation.
Product details

We adhere to the concept of excellence, so the quality of every part of our plastic injection molding machine is very good, our customers say that our machines have high cost performance and high production efficiency.
Shipment
After the plastic injection molding machine is loaded, we will use air bags to reduce the friction between the machine and the auxiliary machine to ensure that the machine can be transported to the destination port intact.

Our customers and Fairs
we experss warm welcome to our customers and partners who have visited our factory.Through visit they will have a more comprehensive understanding of the production process and technology of our molding machines. We will also visit our customers to establish a long-term and friendly cooperative relationship.
Certificates
