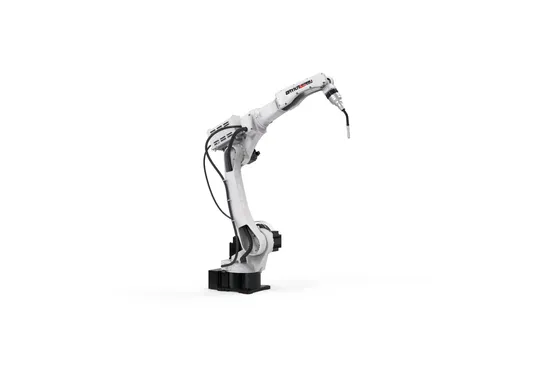

Industrial Laser Welding Robot with 1000W-3000W Laser Power Model Jl-3000

Product Description

Product Description

The combination of robots and laser flexible output allows the robot arm to run faster and with higher repeatability than manual labor, which can effectively save labor costs and quickly increase production capacity. It is an intelligent laser welding machine that is suitable for irregular or multiple welding needs. It can improve production efficiency, achieve product consistency and replace manual welding.Used in aerospace, auto parts, precision instruments, home appliances, medical equipment, sinks, stainless steel products, aluminum products, copper products and other industries.
Parameters and Configuration:

Model	JL-1000	JL-1500	JL-2000	JL-3000
Laser power	1000W	1500W	2000W	3000W
Laser wavelength		1064nm
Working radius		1.4M/1.8M/2.1M/2.6M
Welding speed		5-500mm/s
Gas		Compressed air/nitrogen/argon
Cooling method		Water cooling
Laser source		Max or Raycus brand
Laser head		Ospri brand
Water cooling		S&A
Servo system		Bayka system
Servo motor		TSINO DYNATRON

Detailed Photos
High performance servo for robot
Calibration of the calibrator before leaving factory
RV+harmonic reducer
120 hours of continuous testing before leaving factory
Raycus laser source
Increases the maximum cutting thickness - comparable to traditional processing industries
Oxygen cutting carbon steel bright surface thickness increased - faster, smaller taper
The speed of stainless steel medium and thin plates is increased - smaller air pressure, faster speed
The speed of thin steel plates is increased - by excluding oxygen and replacing it with nitrogen, the speed is increased by more than half.

Ospri laser head welds to form in one go, with basically no deformation; the hand-held operating mode, equipped with a special welding nozzle, can weld any part of the workpiece at any angle, and welds to form in one go, with basically no deformation, which can meet the welding requirements for high-quality products.
The welds are beautiful, there are no weld scars, and no polishing is required; the welds are beautiful, there are no weld scars, no need for subsequent polishing, and the welding is firm.

Company Profile

Shandong Farin International Trade co., ltd/Shandong Farin Intelligent Machinery Co., Ltd.(Hereinafter referred to as "Farin CNC Machine"). Farin CNC Machine is a integrating stock group company in researching and developing, manufacturing and trading at Metal processing industry.
Our products including CNC metal drilling and milling machine, Anlge steel making machine, fiber laser cutting machine,laser robot, ultra-high power 10,000-watt laser cutting machine, plate and tube integrated laser cutting machine, automatic loading and unloading laser cutting machine, hand-held laser welding machine and other equipment. They are mainly used for processing angle steel, metal plates, H-beam, channel steel, box steel, round steel, flange plates and so on in power towers, transmission towers, telecommunications tower, steel structures, central air-conditioners, automobiles, household appliances, petrochemicals and construction industry.
With the developing of the brand efficiency in the international market, Farin CNC Machine increase the investment constantly into the R&D department, in ensuring the stably of the existing products, we constantly absorb quintessence experience of the industry, so that ensure our technology always in the advanced position. Meanwhile, Farin CNC Machine constantly strengthen internal management, so as to realize much more benefit and make great development from the advanced manage method.
Therefore, our products has been exported to more than 100 countries and districts, such as Southeast Asia, North America, South America, Africa and Middle East. And get high appreciated from all over the world. Packaging & Shipping

The machine will be packed in wooden boxes or vacuum packed. The packaging of the goods should be moisture-proof, rust-proof, moisture-proof, corrosion-proof and shock-proof, and should be suitable for sea transportation/multiple transportation.

After Sales Service

1. Warranty. --Farin Laser provides a 1-year free warranty and provides customers with timely solutions. 2. Follow up. --Farin Laser will regularly call or visit customers to perform equipment maintenance and archiving. 3. Online services. -Farin Laser will respond to any questions from customers within 1 hour during working hours, 4. Overseas services. --Farin Laser can provide overseas machinery installation, training, maintenance and other services.
