Manual Hydraulic Skid Pallet Lifter Platform (SL50L, SL100L)

Manual Hydraulic Skid Pallet Lifter Platform (SL50L, SL100L)

US$200.00-800.00 1 unit (MOQ)

Basic Info.

Model NO.
SL50, SL100, PL50, PL100
Size
1115mm Skid Lifter
Load Capacity
1T
Entry Type
4-Way
Style
Double Faced
Insulation
No
Name
Forklift Spare Parts
Rated Capacity
500kg/1000kg Pallet Lifter
Loader Center
500mm Pallet Lifter
Min.Fork Height
85mm Pallet Lifter
Max.Fork Height
830mm Pallet Lifter
Fork Length
1115mm Pallet Lifter
Fork Width
526mm Pallet Lifter
Overall Length
1550mm Pallet Lifter
Overall Width
526mm Pallet Lifter
Overall Height
1012mm Pallet Lifter
Transport Package
Seaworthy Packing
Specification
CE, SGS, ISO
Trademark
SHYTGER
Origin
Shanghai, China
HS Code
8431200000
Production Capacity
3000units/Year

Product Description

Manual Hydraulic Skid Pallet Lifter SL50L,SL100L

Combination of pallet truck and lift table.
Correctly position skids and work surfaces to minimize back strain.
Ideal for your loading and unloading operations.Continuous-welded heavy steel frame and forks handle weighty loads with ease.
Easy-to-use control lever,plus two parking brakes on steering wheels increase safety.
A foot -operated pedal for easier and faster lifting.
A steering handle on 1000kg models for easier and comfortable turning.
Conforms to EN 1757-4.
PL100L with platform

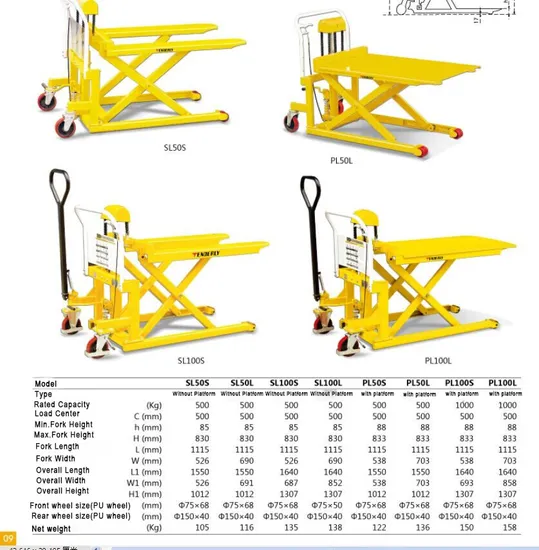

Model SL50S SL50L SL100S SL100L PL50S PL50L PL100S PL100L
Capacity(kg) 500 500 1000 1000 500 500 1000 1000
Platform Without platform With platform
Lowered Fork Height h(mm) 85 88
Max.Fork Height H(mm) 830 833
Fork Length L(mm) 1115 --
Platform Length L(mm) -- 1115
Fork Width W(mm) 526 690 526 690 --
Platform Width W(mm) -- 538 703 538 703
Net Weight(kg) 107 116 135 138 122 136 150 158
