CNC Drilling& Milling Machine Xk713/Xk714

Product Description

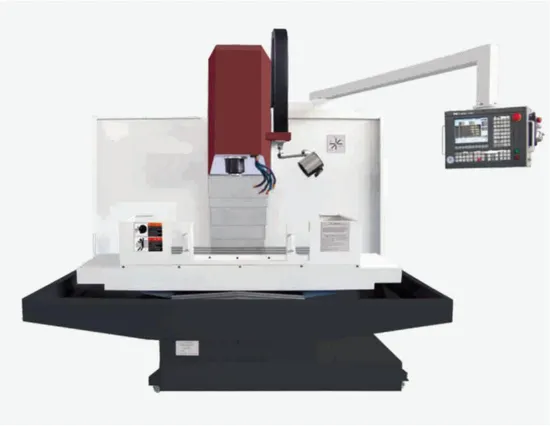

CNC DRILLING& MILLING MACHINE XK713/XK714
Specification:

Model No.	XK713	XK714
Item No.
Moving
X-axis travel	600 mm	800 mm
Y_axis travel	400 mm	500 mm
Z-axis travel	500 mm	500 mm
Distance between spindle end to table	110-610 mm	75-575 mm
Distance spindle axis to solumn generating ling	457 mm	519 mm
Table
Table size	1000X360 mm	1270X400 mm
T slot(wide Xnumber Xspace)	14X3X110 mm	18X3X110 mm
Allowable load	300 kg	500 kg
Spindle
Motor of spindle	3.7/5.5 kw	3.7/5.5 kw
Speed of spindle	8000 r/min	8000 r/min
Taper of spindle nose	BT40	BT40
Feed
Motor of X,Y axis	1 kw	1.5 kw
Motor of Z axis	1 kw	1.5 kw
Rapid feed rate	8 m/min	8 m/min
Cutting feed rate	4 mm/min	4 mm/min
Accuracy
Positioning accuracy	0.025 mm	0.025 mm
Repeat ability	0.015 mm	0.015 mm
Other
Power requirement	12 kw	15 kw
Overall size	2.45X1.45X1.9 m	2.8X1.52X1.9 m
N.W/G.W	2700 kg	3000 kg
Type of screw	C3 grade ball screw
Motor connect mode	Direct
Type of guide way	Rectangular hardened guide ways
Material of bed	High quality cast iron
Type of lubrication	Centrallubrication
Type of cover	standard equipment: Semi-enclosed guard, optional :Totallyenclosed guard
CNC control system	FANUC,MITSUBISHISIEMENSE,KND,HNC,GSK
Standardaccessories	Special accessories
CNC control system HNC-21M	4th,5th axis rotating table
VS half machine encloser	Chip conveyer and handcart
Coolant system	Squirt gun
Auto timing lubrication system	Poratable air gun for chip blow-out
Lamp	Thread-cutting feature
Leveling screw and block	Automactic tool chgange
Heat exchanger system for contro cabinet
Operation manual
Tool box
Heat exchanger system for control cabinet

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
