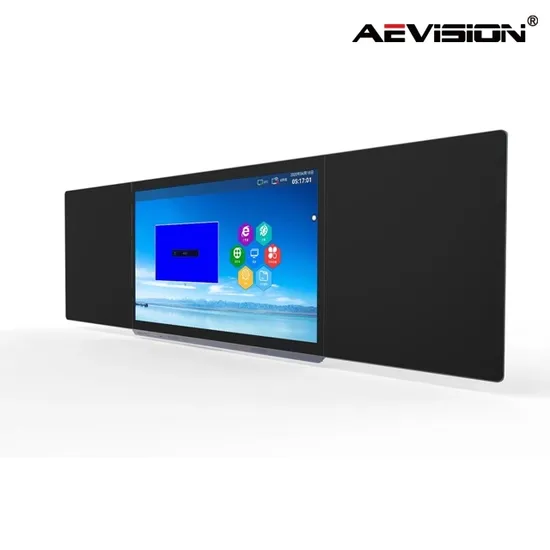

Full-Screen Writable Nano-Smart Blackboards/Touch Interactive Whiteboards Are Equipped with Rich Teaching Resources and Tools.

Product Description

Smart Interactive Whiteboard Specially designed for meetings or education, what are the functions of the interactive smart board?
1. Touch writing: support multi-touch, whether you use a stylus or a finger, you can write smoothly on the whiteboard.
2. Remote meeting: Built in the video conference module, the interactive smart baord can transmit real-time
meeting scenes in real time, without delay.
3. Multi-person interaction: touch and write with your fingers or a touch pen, and multiple people can
write and mark at the same time
4. One-click screenshot: The one-click screenshot function of the conference all-in-one whiteboard, whether in the browser or PPT,
you can use the screenshot tool, save the picture, and save the learning points at any time
5. Dual system operation: Supports both Android and Windows OS.
6. Scan code to share: save the file and generate a QR code, scan it with your mobile phone.
7. Size options including 55'', 65'', 75'', 85'', 98'' and 100''.

Product Parameters

Product Model	AE-LED75A-4KHBP/AE-LED86A-4KHBP
Overall size			4200 mm*1290 mm * 82 mm Installation thickness: 105 mm
The whole machine outer box size			2138*1360*220mm
Sub-board outer box size			1270*1370*220mm
Combination method			Spliced blackboard
Net weight of the whole machine			122KG
Gross weight of the whole machine			154KG
Installation Features			Support wall-mounted/removable bracket mounting
System Support	Support Andrid 6.0/8.0/9.0
Display Features	Display size		75 inches			86 inches
	Brightness		350cd
	Physical Resolution		3840*2160
	Display Scale		16:9
	Contrast Ratio		3000:1
	Color temperature		10000K
	Viewing Angle		178°
	Effective display area		1692*931mm			1896*1067mm
	Service life		>=50,000 hours
Power supply characteristics	Power input		100~240V/5A/60HZ/50HZ
	Whole machine power		210W(MAX)
	Standby power		0.5w
Signal port characteristics	POWER		Support front power one button switch
	TYBE-C		Front TYBE-C*1
	HDIM		HDMI input*3
	USB		Shared USB input*3, PC USB*1 and Android USB input*1
	RJ45		RJ45 input*1 and RJ45 output*1
	RS232		RS232*1
	TOUCH USB		TOUCH USB-B output*1 and TOUCH USB-A output*1
Control characteristics	Support infrared remote control function
	Support physical button control function
	Support OSD touch menu control function
	Support five finger recognition touch a key to turn off the backlight function
Accompaniment function	Audio power: 50W
	Support for local saving of microphone audio recordings.
Writing characteristics	The blackboard surface supports chalk writing, liquid water pen writing, etc.
Capacitance characteristics	Projected full lamination
Built-in array microphone	Audio Processor			Built-in microphone with quad-core digital processing chip WM8281
	6 Array Microphone			DSP core, support 6 analog / digital MIC input, high performance echo cancellation (AEC) function
	Stereo output			High signal-to-noise ratio with low noise level 3uvrms, providing high-fidelity audio output
Built-in array microphone	Audio Processor			Built-in microphone with quad-core digital processing chip WM8281
	6 Array Microphone			DSP core, support 6 analog / digital MIC input, high performance echo cancellation (AEC) function
	Stereo output			High signal-to-noise ratio with low noise level 3uvrms, providing high-fidelity audio output
OPS computer module hardware configuration parameters
Configuration options		Standard version
CPU		Intel Core i3 / Support higher version customization
Chipsets		4130/H81
Main Frequency		3.4GHz
RAM		4G DDR3
SSD Storage		128GB SSD Solid State Drive
GPU		Intel Core Graphics HD Graphics
PC module interface configuration		Default standard type			Engineering Customized Type
		1) USB2.0 x4 way (including front 2 way) 2) USB3.0 x2 path 3) RJ45 Ethernet wired interface x1 way 4) HDMI (1.4a) x1 way MIC microphone x1 way AUDIO LINE x1 way VGA x1 way 8) Wi-Fix1 path (supports IEEE802.11b/g/n)			1) USB2.0x6 (including front 2) 2) USB3.0 x2 path 3) RJ45 Ethernet wired interface x2 way 4) COM Debug DB9 Male x1 Way Display Port (4K) x1 way HDMI (4K) x1 way MIC microphone x1 way AUDIO LINE x1 way VGA x1 way Wi-Fi x1 way (supports IEEE 802.11b/g/n)
OPS computer module load output parameters
OPS supply voltage		12V-19V DC
Rated output current		7.0A
Peak output current		8.0A
Rated load power		126W
Supported Interface Types		Intel Open Pluggable Specification compliant OPS-C 80-pin blind JAE interface
External Module Size		L196*W180*H33~42mm (recommended height 33mm)

Application scenarios

Company Profile
Guangzhou Aevision Electronics Technology Co. Ltd, was founded in 2008 and is headquartered in Liandong U Valley Technology Headquarter, xicheng Middle Street,nanwan Village, Huangpu District, Guangzhou. It is adjacent to the science city-Dawan District Intelligent Manufacturing Innovation Center. Currently, it focuses on the research and development of audio and video codec products, production and sales of full range display equipment, incubation of innovative automated electromechanical integration eguipment a comprehensive industrial conglomerate with intelligent building construction business as its core entity.
FAQ

Are you a factory or trading company? We are a TRUE OEM/ODM factory. Please kindly read our COMPANY PROFILE, for more information can be found on it. What're your payments ? We accept most of payment methods: VISA,T/T,Western Union,Paypal and Cash... What about the package ? Standard case or carton, also support custom wooden boxes. How long is the warranty ? According to international standards, products in standard operation is 1 year,except wearable parts. How product quality and service? Our monitors have CE,FCC,RoHS,etc certificate, quality assured, can accept OEM, provide various personalized needs. The defect rate of the product? We are all Grade A panels, and the defect rate is strictly controlled at three thousandths. Which countries are the products exported to, and in what form? Southeast Asia, Middle East, Europe, North America. Mainly OEM, some countries also promote our own brand AEVISION.
