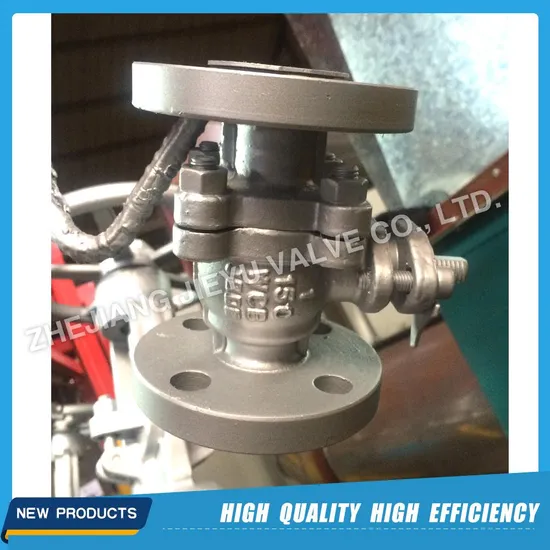

150lb API Wcb Floating Ball Valve

150lb API Wcb Floating Ball Valve

US$10.00 1 Piece (MOQ)

Basic Info.

Model NO.
Q41 Q47 Q341 Q347
Driving Mode
Manual
Nominal Pressure
ANSI CLASS 150-900
Channel
Straight Through Type
Structure
Floating Ball Valve
Type
Floating Ball Valve
Function
Blow-Down Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Packaging Details
Plywood or as The Customers′ Requirement.
OEM
Yes
Painting
According to Customer′s Requirement
Certificate
API
Transport Package
Plywood
Specification
1
Trademark
JY OR OEM
Origin
China
HS Code
8481804090
Production Capacity
5000pieses/Year

Product Description

Stainless Steel CF8/CF8M/CF3/CF3M Flange Ball Valve
Size:1/2"-24"
Model:Q41F/Q341F
Pressure:150Lb-1500Lb
Applicable Medium: steam, water, oil,etc
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Ball Material: Carbon steel A105, A105+ENP, Stainless steel SS201,SS304,SS316, SS316L
Operation: Lockable Handle Lever, worm, electric, pneumatic

Full port ( FP) or Regular Bore (RB), Two piece Split body or Three piece bolted body, Floating ball type or Trunnion Mounted type, Blow-out Proof Stem, Anti-staic, optional Locking Device or stem Extension, optional Direct Mounting to ISO 5211

Standard:
Design and Manufacture: API 6D, ASME B16.34
Face To Face Dimension: ASME B16.10,API 6D
Flange Connection Dimension: ASME B 16.5
BW Connection Dimension: ASME B16.25
Test And Inspection: API 598, API 6D
Fire-safe Design: API 607/6FA
Products:
Zhejiang Jieyu Valve Co., Ltd. is a manufacturer of gate valves, globe valves, check valves, and ball valves with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, electric power, pharmaceutical, paper, urban construction and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
show of power
FAQ:
1. Yes, sample order is available for quality check and market test. But it is not free.2. It usually takes about 25-30 working days to produce. For big order, it depends on the order quantity.3. We usually accept T/T, L/C, Western Union, Cash.4. We offer 12months warranty time.5. Depends on your request, we have standard models in stock. Some special products and big order will be newly produced according to your order.6. Yes, different models can be mixed up in one container.7. Quality is priority, we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before painting, packing and shipping.8. Yes, we have the right to export and can sell product all over the world.9. Our company has been audited and approved API 6D, CE 0036, ISO9001. Test report will be provided when all goods finished. Also we are the ******'s gold supplier since 2010. Now we clients all around the world.
