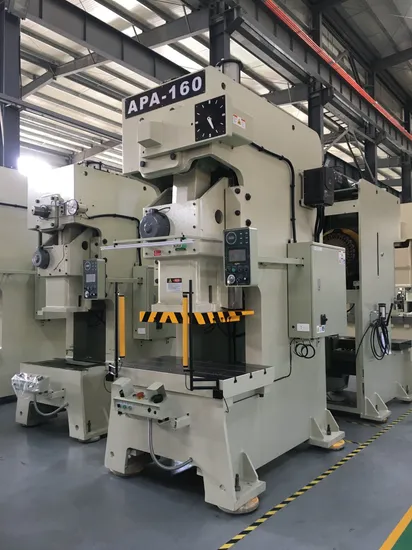

Apa-160V CNC Mechanical Punching C Frame Single Crank Stamping Power Press Machine

Apa-160V CNC Mechanical Punching C Frame Single Crank Stamping Power Press Machine

US$7,800.00-75,000.00 1 Set (MOQ)

Basic Info.

Model NO.
APA-160V
Power Source
Pneumatic
Feature
High Efficiency
Certification
ISO9001, CE
Warranty
12 Months
Customized
Customized
Advantage
Use Widely
Condition
New
Capacity
160 Metric Tons
Stroke
200mm
Die Height
400mm
Stroke Per Minute
20- 50s. P. M
RAM Adjustment
100mm
RAM
990mm X 550mm X 90mm
Bed
1250mm X 760mm X 140mm
Motor
15kw X 4
Air Pressure
0.6MPa
Die Cushion
10 Metric Tons
Transport Package
Wooden/Metal Pallet with Plastic Film
Trademark
EDPS
Origin
China

Product Description

High precision power press machine are from15T to 400Tons.In order to guarantee relative stationarity of machine operation, it is necessary to balance two balancers.
Moulding-adjustment precision is as high as 0.1mm, safe, speedy, and reliable.

Performance Feature
With high rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses, so that stability and reliability of the whole machine in precision are enhanced.
Consistent driving center and machine center to guarantee accurate and stable punching.
Through hard oxidation and grinding, such parts as bent axles, gear sets, and connecting rods possess higher combination property and tolerance.
Adopt highly sensitive and reliable clutch/brake and internationally top duplex magnetic valve, as well as overload protection devices, to guarantee precision and safety for operation and stop of press rams.
Machine's structural design shall be reasonable, for the convenience of realizing automatic production, reducing costand improving efficiency.
Possess advanced design concepts, low noise low consumption, and energy saving.
Technical Specification


Standard configuration
>Inverter
>Hydraulic over-load protector
>Electrical automatic lubrication system
> Slide sdjust device
>Die hight indicator
>Balance device
> Rotary cam switch
>Misfeed detection consent
> Power supply
> Crank angle indicator
>Electrical stroke counter
>Air source connector
>Against over-run safety device
> Air ejector
>Maintenance tool box
> Operation manual
Optional Configuration >High performance wet clutch & brake
>Pneumatic die cushion device
> Foot switch
> Quick die change device
(die lifter, clamp and die arm sepjes)
>Slide knock-out device
>Auti-vibration press mount
>Photo-electronic safety device
> Feeder
> Uncoiler
>Straightener
>Mechanism hand
> Die room light
>Touch pad(preset, total counter)
>Human-computer counter system
Transport And Pack
We are currently reviewing our product packaging from the angles of waste-reduction and resource-saving. We are also working on improving transportation efficiency from the design phase of product development.
All the spare parts of the machine were covered by the some soft materials mainly using plastic film.
Our wooden pallet is after fumigation treatment. Needn't timber inspection, saving shipping time.
Our metal pallet is special designed and paint grease at the bottom so that we can load easily.


Enterprise Profile And Our Customers

Why Choose Us?
Yiduan are specialist in manufacturing precision and high-speed punching press machines (15-2500T). Our company has many super large CNC machines and various precision testing machines. By advanced quality control method of a whole series imported physical & chemical equipment and enterprise information engineering such as ERP, PDM, CAM, etc. To realize a quick response to the market's demands.Yiduan insists to the quality policy of "pursue excellent quality with a dedicate service" and continuously improves the whole company's quality awareness and the overall quality level. We define a clear quality objectives and principles to guarantee the products advancement, reliability and advantages in market competition. We are looking forward to your prompt orders and welcome to contact us for any special requirement.

Our customers are all over the world,our continuously persistent development history is our incomparable wealth!
