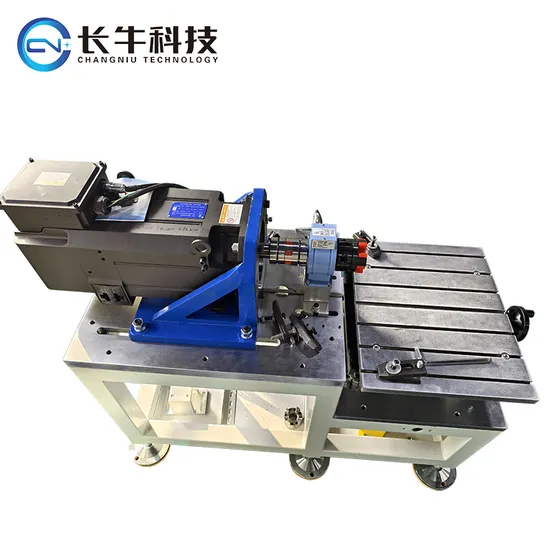

Manufacturer ODM Motor Magnetic Particle Dynamometer Motor Test Machine Test Equipment
| US$3,000.00-30,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
CNC20m
Max Diameter of Workpiece
900mm
Mass Scope of Workpiece
<900kg
Type
Hysteresis Dynamometer
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Digital
Control
Computer Control
Weight
0-100Kg
Power Source
AC220V
Oil Cylinder Position
No Cylinder
Rotation Speed
30000rpm
Continuous Power
10W
Short-Term Power
40W
Cooling Method
Natural Cooling
Customised or Not
Non-Standard
Transport Package
Dust Free + Wooden Box
Specification
customisable
Trademark
Changniu Technology
Origin
Hangzhou, China
Production Capacity
500pieces/Year
Packaging & Delivery
Package Size
1200.00cm * 900.00cm * 400.00cm
Package Gross Weight
60.000kg
Product Description
Manufacturer ODM Motor Magnetic Particle Dynamometer Motor Test Machine Test EquipmentMagnetic particle dynamometer
The magnetic particle dynamometer is composed of a stator, a solid rotor, a magnetic coil, a magnetic particle medium, a bracket, a bottom plate, etc., when the internal coil of the magnetic particle dynamometer passes through the current, a magnetic field is generated, so that the internal magnetic particles are arranged into magnetic chains according to the magnetic field lines, and the pulling force generated by the magnetic particle chain becomes the resistance to prevent the rotor from rotating, and the force is the load moment. The load torque can be changed by changing the excitation current.
It is suitable for occasions with high torque and low speed, such as constant torque with load starting, asynchronous motors, reducers, hydraulic motors, mining machinery and other power machinery.
Features:
Simple structure, compact, large braking torque
Good stability, fast dynamic response
Long service life, easy maintenance
| model number | Test range | Operating power | accurate | Cooling method | ||
| torque(N.m) | rotation speed(rpm) | continuous power(w) | short-term power(w) | |||
| CNF1 | 1 | 2000/5000 | 50 | 200 | 0.5% & 0.2% | natural cooling |
| CNF2 | 2 | 2000/5000 | 80 | 300 | 0.5% & 0.2% | natural cooling |
| CNF5 | 5 | 2000/5000 | 100 | 400 | 0.5% & 0.2% | natural cooling |
| CNF10 | 10 | 2000/5000 | 150 | 600 | 0.5% & 0.2% | natural cooling |
| CNF20 | 20 | 2000/5000 | 2000 | 6000 | 0.5% & 0.2% | air cooling |
| CNF50 | 50 | 2000/5000 | 3000 | 9000 | 0.5% & 0.2% | air cooling |
| CNF100 | 100 | 2000/5000 | 5000 | 15000 | 0.5% & 0.2% | air cooling |
| CNF200 | 200 | 2000/5000 | 8000 | 25000 | 0.5% & 0.2% | air cooling |
| CNF500 | 500 | 2000/5000 | 10000 | 30000 | 0.5% & 0.2% | air cooling |
