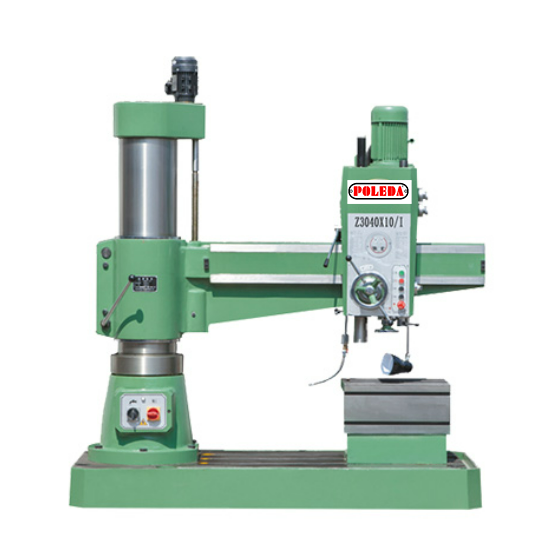

Z3040 Mechanical Radial Drilling Machine Multi-Function Metal Processing Machine

Product Description

Product Description
Rocker Arm Drill Product Introduction
The radial drilling machine emerges as a pinnacle of hole processing equipment, masterfully crafted for a myriad of operations including drilling, reaming, tapping, and even face trimming. It is particularly adept for both single and mass production scenarios, especially when dealing with large, porous components. This indispensable tool is a staple in general machining workshops, renowned for its versatility and precision. Key features include:
Structural Features: The innovative design allows the rocker arm to effortlessly rotate and elevate around the column, while the spindle box traverses horizontally along the arm. This engineering marvel grants the radial drilling machine unparalleled operational convenience, flexibility, and an expansive application range, excelling in the handling of large and heavy workpieces.
Classification: Radial drilling machines are classified based on their clamping structures into hydraulic and mechanical types. Furthermore, these versatile machines are categorized by drilling size and mechanical principles, leading to a vast array of models and specifications that cater to diverse processing requirements.
Technical Parameters: These include maximum drilling diameter, the spatial distance between the spindle and the column, the interval from the spindle end face to the worktable, and the spindle's rotational speed. These critical parameters decisively influence the machine's machining capabilities and efficiency.
Safety Performance: Equipped with an array of safety measures such as spindle overload protection, travel limit switches, and lifting screw safety nuts, the radial drilling machine ensures operations are conducted with the highest safety standards.
Application: The radial drilling machine is a versatile powerhouse in machining departments, adeptly handling tasks from drilling to tapping, and beyond. Its presence is crucial in meeting the diverse processing demands across various machining and production sectors.
Operation and Maintenance: This machine supports both manual and numerical control operations, with transmission modes that include mechanical and hydraulic options. Proper operational techniques and diligent maintenance are vital to preserving machine performance and extending its operational lifespan.
In summary, the radial drilling machine stands as a multifunctional, efficient, and secure solution for hole processing, adeptly serving the machining and production of diverse metal parts. It is an essential component in modernized machining workshops, underpinning productivity and precision.
Product Parameters
Rocker Arm Drill Product Performance
Presenting a new series of radial drilling machines that boast exceptional multifaceted performance and safety. These machines promise reliability, ease of use, and straightforward maintenance, delivering high precision and rigidity alongside an extended lifespan. Utilizing hydraulic primary variable speed systems, these machines minimize auxiliary time with seamless spindle operations, quick braking, and gap transmission. The hydraulic-driven diamond block clamping mechanism ensures secure handling of the spindle box, rocker arm, and columns. Furthermore, quenched surfaces across various components maintain machine stability and precision over time. Additionally, comprehensive safety protection devices safeguard operational integrity.
By classification, radial drilling machines split into hydraulic and mechanical types. Hydraulic drills offer ease and dexterity in operation, making them ideal for both single and mass production tasks involving large, porous components. As a common fixture in machining workshops, they are revered for their broad applicability.

Product Name	Radial drill	Radial drill	Radial drill
Product model	3040*13/16	3032	Z3050*13/16
Maximum diameter of hole	casting40/Steel part35mm	casting32/Steel part27mm	casting50/Steel part45mm
Distance from spindle end face to table	430-1210mm	360-1050mm	360-1300mm
Distance from spindle center to column busbar	300-1100mm	260-1050mm	260-1050mm
Spindle travel	220mm	120mm	220mm
Main shaft hole cone	4Mohs	4Mohs	4Mohs
Spindle speed range	34.78.145..75130.560.260.430.920.380.760.1280rpm		34.78.145..75130.560.260.430.920.380.760.1280rpm
Spindle speed class speed	12	6	12
Spindle feed range	0.10-0.25rpm	0.10-0.25rpm	0.10-0.25rpm
Spindle feed series	3	3	3
Swing arm rotation Angle	Plus or minus 180 degrees	Plus or minus 180 degrees	Plus or minus 180 degrees
motor power	2.2kw	1.5kw	4kw
Machine weight	1400kg	9600kg	2400kg
Overall dimension	1500*705*2020mm	1350*705*1880mm	1950*810*2450mm
