New Outdoor Home Emergency 12V/6A Motorcycle Starter Battery

Product Description

Product Description12V6A
super performance product
reliable & long-lastingAdvanced technology
high-quality materials
excellent charge &discharge performance
& stable&reliable working performance
safer and more reliableleak-proof
shock-proof
explosion-proof
Product Parameters

Battery Type:	Battery Type:Lithium Iron-Phosphate (LiFePO4)	Built-In Battery Management System:	YES	Voltage:	12.8V (nominal)
Capacity:	6000mAh	Dimensions:	150*65*93mm	Weight:	1.1kg
Cranking Amps:	650 peak (varies, see battery label)	Max Charging Rate:	(see battery label)	Max Charging Voltage:	14.4V
Min Discharge Voltage:	12.4V	Peak Discharge Current:	180A (20S)	Charger Type:	Lithium-Iron Phosphate for 12.8V Batteries

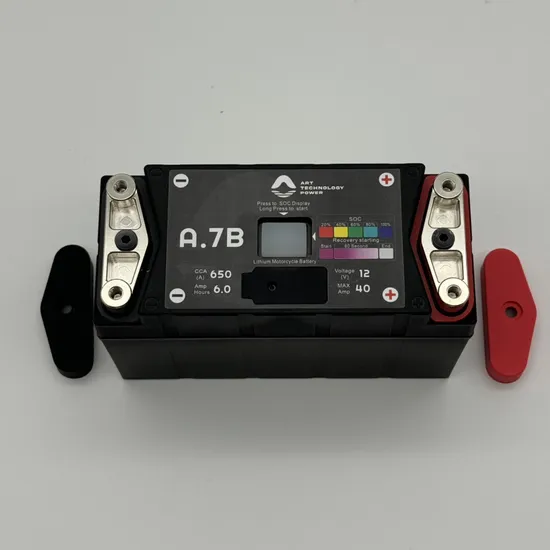

Product advantagesSOC display
pressing the multi-function button (below abbreviated as button), SOC is displayed in different color, the SOC value is calculated by Coulomb meter.
sleep mode,
pressing and holding the button for 2S will wake up the battery and provide 1 minute output, and the LED display embedded in the button shows a 1 minute countdown.multi functional
The built-in battery management system has functions such as over-discharge protection, cell balancing and temperature protection, making the battery safer and longer lasting.

There are two solid copper threaded plug-in terminals on each negative and positive pole for easy wiring.

Applications

Cell OVP	When charging, any single string of cell voltage reaches the preset protection threshold, the protection is triggered, and the Charge MOSFET (CFET) is turned off.
Charge Over-current Protection	When charge current reaches the preset protection threshold for a preset time period, the protection is triggered, and the CFET will be turned off.
UTC/OTC	While in charging, when the battery pack temperature reaches the protection threshold for a preset time period, the protection is triggered, and the CFET will be turned off.
Pack UVP	When the total voltage of the battery pack is below the preset protection threshold for a preset time period, the protection is triggered and the discharge MOSFET (DFET) is turned off
Cell UVO	When the discharge of a single string of cell voltage is detected below the preset protection threshold for a preset timeperiod, the protection is triggered, and the DFET is turned off.
OCD	When discharge current reaches the preset protection threshold for a preset time period, the protection is triggered, and the DFET will be turned off.
UTD/OTD	While in discharging, when the battery pack temperature reaches the protection threshold for a preset time period, the protection is triggered, and the DFET will be turned off.
Short Circuit Protection	When current value reaches the preset short-circuit protection threshold for a preset time period, the protection is triggered, and the CFET & DFET will be turned off, the battery pack will go into Power OFF.

Operation guide·Make sure the product is installed correctly
·Position the cable leads properly to avoid accidental damage by moving vehicle parts (for example hoods and metal parts) and moving engine parts (for example fan blades, belts, and pulleys)
·Do not install the product next to metal objects that could cause a short-circuit.
Notes
1.This product is designed to work in ambient temperatures between -10°C to 48°C (14°F to 118°F).
2.Only charge the battery within 0°C to 45°C (32°F to 113°F) range.
3.The storage temperature is -20°C to 25°C (-4°F to 77°F).
4.Never exceeds 80°C (176°F) under any operating/storage conditions.
5.DO NOT attempt to charge or jump-start a damaged or frozen battery
FAQQ1: What type of battery does the starter battery use?
A: We use lithium iron phosphate batteries.
Q2: Can it be installed on a motorcycle as a battery?
A: Yes, before installing this battery, please be sure to check the vehicle's charging system to make sure it is working properly and the output voltage cannot exceed 14.4V.
Q3: Does the starter battery have protection function?
A: Yes, it has multiple protection functions, including cell overcharge protection, charging overcurrent protection, low temperature protection, high temperature protection, undervoltage protection, discharge overcurrent protection, low temperature discharge protection, high temperature protection, and short circuit protection.
