Znc350 Znc450 Znc650 Electric Discharge CNC Die Sinking EDM

Product Description

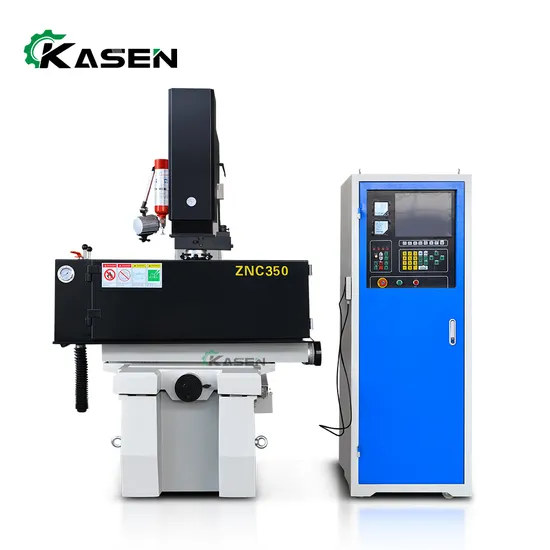

ZNC350 ZNC450 ZNC650 Electric Discharge CNC Die Sinking EDM
Product Description
Main technical specifications:

Model number	ZNC 350	ZNC 450	ZNC 550	ZNC 650
Workbench size(mm)	600*300	700*400	800*480	1000*600
Working slot size(mm)	820*500*300	1120*620*420	1290*770*500	1700*1000*620
X-Y-Z travel(mm)	300*200*200	400*300*200	500*400*250	600*500*250
Spindle head stroke(mm)	200	200	300	300
Electrode lifting weight(kg)	60	70	200	200
Max. workpiece weight(kg)	500	750	1500	2250
Electrode plate to table distance(mm)	150-550	200-600	160-710	260-860
Working fluid capacity(L)	280	300	470	940
Dimension(mm)	1320*1220*2240	1400*1200*2050	1530*1850*2250	2150*1800*2400

Electrical cabinet	P30A/P30B	P60A/P60B	P90A/P90B
Max. working current(A)	30	60	90
Max. power consumption(KVA)	2	4	6
Processing speed(mm³/min)	200	400	600
Min. electrode consumption	0.3%	0.3%	0.3%
Optimal surface roughness(μm)	Ra≤0.3	Ra≤0.3	Ra≤0.3
Dimension(mm)	760*620*1840	760*620*1840	760*620*1840
Weight(kg)	190	210	230

Additional remarks: 1.The ZNC sreies can process stainiess steel hard enedsteel,hard alloy,copper,aluminum and other conductive materials. 2.The ZNC sreies can process hole with diameter of0.3-3mmandmaximum depth-diameter ratio of 300:1. 3.Generally,the processingspeed can reach30-60mm per minute 4.Direct use of tap water as working fluid. 5.According to the user's require ments,the machine can be configured into multi-axis CNC or digital display machine.
After Sales Service
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
