Good Factory Price 5030A Small Size X Ray Baggage Scanner for Security Inspection

Product Description

Product Description

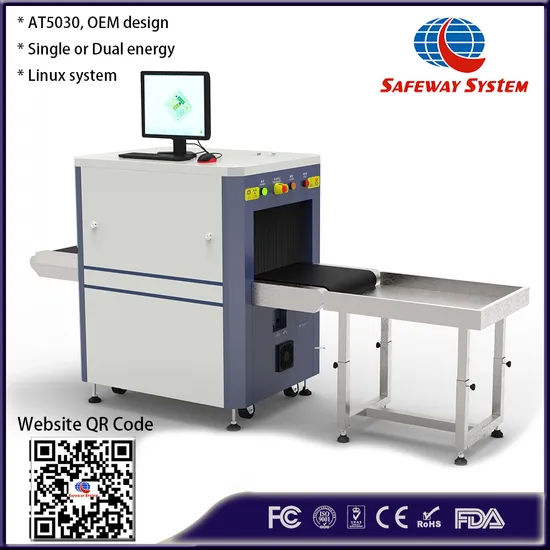

Safeway System Small Size X Ray Scanner for Hotel/Shopping Mall/Office Security Check AT5030A
Cheapest 5030A Single Energy Security X-ray Machine and Baggage & Luggage Scanner - Biggest Manufacturer with super quality
THREE DESIGNS optional for your choice
AT5030A X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination. It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.

AT5030A belongs to the "X-Ray Baggage Scanner" product family, which are designed for the security inspection of the small baggage&parcels, suitcases and handbags etc.
It is the basic and most popular model of all X-Ray baggage scanners. Considering from the prices, it is the cheapest one. It's widely used in the shopping malls, subways, schools, factories and other infrastructures.
Currently we may ship around 30 units every working day, and we build large quantity of material stocks. It is the most popular model and the star in the "X-Ray Baggage Scanner" product family.
Product highlights
* Linux operation system
* ARM CPU
* Digital signal and processor
* Continous hard work for 10000 hours
* Energy saving design
* High penetration
* Good quality images


Technical Specifications

NO.	Item	Tested Value
1	Wire resolution	40	AWG
2	Penetration resolution	32	AWG
3	Spatial resolution	Vertical: 1.0 Horizontal: 1.0	mm
4	Penetration	8	mm
5	Organic matter resolution	/	mm
6	Grayscale, mixture resolution	/	mm
7	Inorganic resolution	/	mm
8	Effective material resolution	/
9	single dose	≤3.5	uSv(uGy)
10	leakage dose	<1	uSv/h(uGy/h)
11	noise level	No more than 60dB
12	conveyor belt speed	Around 0.2 m/s
13	Conveyor belt maximum load	100kg
14	Maximum power consumption	0.5kW
15	safety performance requirements	Compliant with GB15208.1-2018 standards
16	Electromagnetic Compatibility Requirements
17	Electrical Safety
18	Environmental adaptability
19	leakage current	No more than 5.0mA
20	film security	Compliant with ASA/ISO 1600 film safty standards
21	weight	260kg
22	Working environment temperature/relative humidity	5ºC~40ºC;0%~90%
23	Storage temperature/humidity	-20ºC~+60ºC/10%~90%
24	Atmospheric pressure	86kPa~106kPa
25	Working power	AC220V+10%~-15%,50Hz±3Hz
26	operating system	LINUX
27	running memory	1G
28	storage memory	8G

Software Information

NO	Item	Functions
1	POST	With fault self-checking function, the corresponding fault information can be displayed when a fault occurs (1. Emergency stop 2. Side panel open 3. Calibration failure 4. Acquisition system failure 5. Hard disk not found)
2	Image Processing	With color/black and white, local increase, high penetration, low penetration, super increase, organic highlighting, inorganic highlighting, inverse color, brightening, darkening, gray sweeping, zooming, organic marking, suspicious object marking, edge enhancement processing functions
3	image pullback	30 checked images can be played back
4	Number of image storage	Can store 10,000 checked images
5	real-time curve	The real-time curve can be used to detect whether the acquisition system and components are working properly
6	time setting	System time can be set
7	Probe setting	Can realize manual deletion of high and low energy detection board dead pixels, and display the deleted dead pixels in the display area
8	Ray source settings	There are two ray source control modes, digital source and analog source, and can control the digital source.Set the ray source parameters
9	Alarm system	The alarm function can be turned on and off, the alarm type of the alarm frame and sound and light alarm can be selected, and the sensitivity, minimum absorption rate, maximum absorption rate, and alarm duration can be sets
10	Troubleshooting	It can diagnose whether the import and export light barrier, side panel switch, emergency stop switch, light source and other components are normal, and display the standard value and current value of the detected voltage
11	Image settings	You can set the control direction of the drum operation and the movement direction of the image display
12	software registration	It can realize software registration function, and has serial number, registration code, registration status, system time information display
13	User login	By entering different user names and passwords to log in to the menu, only login can be used for other parameter settings
14	User Management	Can add, delete, edit operation user name and password and set user level, restore deleted historical users
15	authority management	Different default permissions can be set according to user level
16	language settings	System language can be set to switch between Chinese and English
17	log management	User operations can be monitored and user operations can be queried
18	about	Display version and device number
19	TIP report	report can be generated for the operation of identifying TIP after the TIP insertion function is enabled. The report content: user name, number of TIP insertions, number of marks, false positive rate, detection probability, false positive probability
20	TIP management	It can be set to enable and disable the insertion of dangerous goods, and can set the identification time, prompt time, insertion frequency, proportion of single items, add TIP files and delete files.
21	file management	Query, open and export inspected images
22	Function settings	You can adjust the log level of the work, save the file time, whether to open the training function, whether to turn on Smart Roller to set
23	Statistics	Display the working time of the system, the total working time of the ray source, the total number of luggage packages in the system, the total number of luggage packages this time, and the above data can be cleared
24	System parameter settings	Export data, pictures, backup directory can be selected, motor type, Select and adjust the detector type, whether to open the debugging mode, model, and gain. You can enter the corresponding IP address on the network connection to achieve the sharing function, there are in the system settings The corresponding software can realize the system upgrade

Key components

NO	Item	Details
1	X-ray generator	Anode voltage: 80kV, cooling method: sealed oil cooling
2	electric drum	DC
3	control panel	imx6_mainboard
4	monitor	21.5-inch LCD monitor, resolution: 1920x1080
5	keyboard	dedicated keyboard

Accessories list

NO	List	Q'TY(PCS)
1	AT5030A complete machine	1
2	User manual, warranty card + certificate, mouse pad, packing list, key, sticker	1
3	Dedicated keyboard and mouse	1
4	Console table	1
5	monitor	1
6	power cable	1
