1500/4000 V Groover Machine CNC Stainless Steel

1500/4000 V Groover Machine CNC Stainless Steel

US$27,800.00
1-4 Pieces
US$22,800.00
5+ Pieces

Basic Info.

Model NO.
GNKP1500/4000
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Main Motor Power
5.5kw
Cutting Degree
75m/Min(Max)
Pressure of Hydraulic System
7-9MPa
Min Height of Metal Sheet
0.5mm
Max Height of Metal Sheet
4.5mm
Specification
6100x2300x1700mm
Trademark
BEKE
Origin
China
HS Code
8462490000

Packaging & Delivery

Package Size
6100.00cm * 2600.00cm * 1700.00cm
Package Gross Weight
8600.000kg

Product Description

Detailed Photos

Packaging & Shipping

Certifications

Company Profile

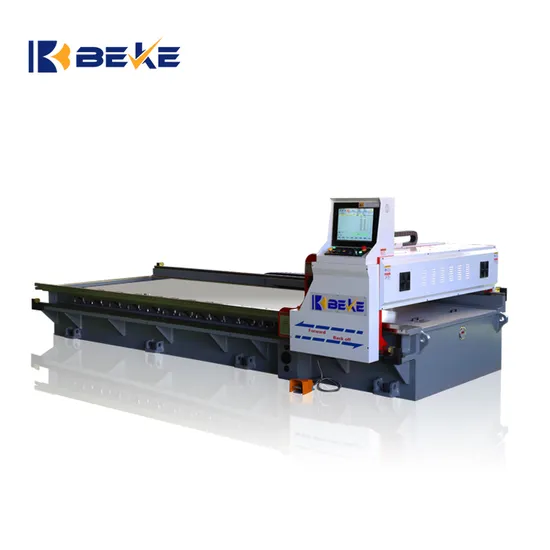

GNVP Series V grooving machine introduction
In ordinary bending processing, a large arc is left at the bend, and the thicker the processed plate, the larger the arc. The existence of large arc angle affects the overall beauty of the product. In order to solve this problem, our company launched a series of CNC sheet metal V-Groove planer products with a new design concept. This series of products have high processing accuracy, easy operation, stable and reliable operation. It is used for V-groove processing on the stainless steel, iron plate, copper and other plates, especially suitable for V-grooving processing before sheet metal bending.
Japan Abel CNC Control System
Very stable and easy operation. Support 4 axis linkage. Minimum setting unit 0.01mm.
PLC breaking function, fixed scan time 10ms.
Each axis has feedback function for displaying axis position and avoiding allision.
GNVP Series grooving machine introduction In ordinary bending processing, a large arc is left at the bend, and the thicker the processed plate, the larger the arc. The existence of large arc angle affects the overall beauty of the product. In order to solve this problem, our company launched a series of CNC sheet metal V-Groove planer products with a new design concept. This series of products have high processing accuracy, easy operation, stable and reliable operation. It is used for V-groove processing on the stainless steel, iron plate, copper and other plates, especially suitable for V-grooving processing before sheet metal bending.
Specification
ITEM
VALUE
Model
GNKP 1250/4000
Brand Name
BEKE
Max width of metal sheet
1250mm
Max length of metal sheet
4000mm
Max height of metal sheet
4.5mm
Min height of metal sheet
0.5mm
Min distance between V-groove
8mm
Cutting degree
75m/min(max)
Main motor power
5.5kw
Pressure of hydraulic system
7-9Mpa
Condition
New
Warranty of core components
2 years
Voltage
380V
Dimension(L*W*H)
6100X2300X1700mm
Weight (KG)
8570
Warranty
2 years
