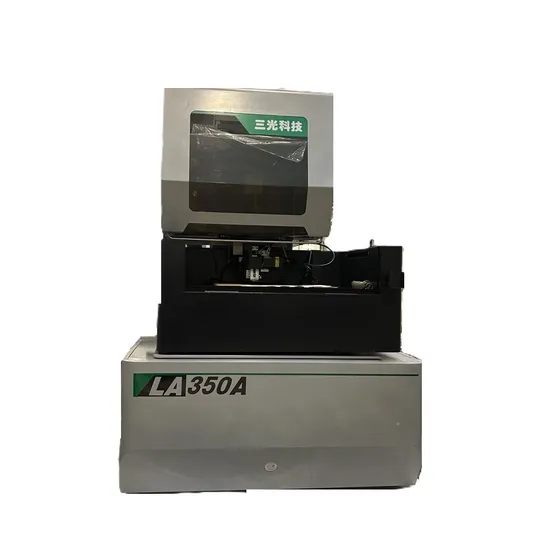

High Precision CNC EDM Brass Wire Cutting Machine

Product Description

Product Features
Product Description:
1.Close-loop control Imported Linear Scale with THK Ball Screw, which realizes long-term accuraccy guarante. 2.LRT1 Intelligent Pulse Power Supply LRT1 not only achieves high roughness finish,but also enures high productivety and high efficiency. 3.Easy to use Using ergonomic design of the operation panel and interface,based on Windows XP, Touching Screen,Easy to use and learn. Configurations: Linear Scale imported and Close-loop system THK Guide Way and Ball Screw Grundf0s pumps 5 Axis AC servo system Inverter imported Windows XP Touching Screen and Mouse Product Parameters

Model	LA350
Worktable Dimension(L×W)	600×400mm
Worktabel Stroke(X×Y)	350×250mm
Z Stroke	210mm
Max. workpiece height	200mm
Max. workpiece weight	350Kg
Max.cutting Angle/ Height	±15°/100mm
Max.cutting speed	≥210 mm2/min
Machining method	Flushing
Wire diameter range	0.15~0.3mm
Machine dimension(L×W×H)	1495×1280×2050mm
Machine weight	1990Kg

Our Advantages

As one member of CNC Wire-cutting EDM family, the excellent machine feature ofLA series continues as always. We make every detail to greatest benefits, especiallyon protecting environment, productivity, roughness, easy to use, power consumptionand durability, as well as playing a best effectiveness in whole lifetime of products.Over 50 years reaching and developing , we minimize your source consumptionthrough introducing advanced technology of the world.
Excellent Performance Corner Control
Abundant and intelligent cornercontrol to the all kind of cornercondition,machining with optimacontrol automatically and power,which can get high precision ofthe corner


Checking Instrument&Equipment

Elaborate ProduceWe earnestly carry out every aspedt ofthe machine details. Most of machinecasting is machining by 5 axis- ceriteiand every key parts are checked byCMM
1 5-center machining
2 Machine accuracy checked by laser system
3 Parts checked on CMM of" ZEISS"
4 Machine accuracy checked by"Renishaw" ball
Automatic Threading
Fusing cut wire systemIt makes wire heating,strengththen cut wire, the head of brasswire becomes sharpness, whichmakes the wire thread into smalhole with narrow gap easily.Make sure the success rate ofauto wire thread
Wire sending-receiving system
The system open the electrodesending-receiving system, whenthe threading and wire breakrestore not in a good condition
Packaging & Shipping

Company Profile
Suzhou Sanguang Science&Technology Co., Ltd. is a research and development, manufacturing, production, sales, service as one of the high-tech enterprises, is a leading enterprise specializing in the production of CNC electrical discharge machine tools . The company is located in the scenic Suzhou National High-tech Industrial Development Zone, headquartered in No. 145 Songshan Road, Suzhou New District.
Company product line "SANGUANG" brand includes Brass wire cut EDM, Molybdenum wire multi-cutting EDM, Die-Sinker EDM and Small hole drill EDM. Taking advantage of the brand advantage of "Sanguang Brand", it integrates the characteristics of international mainstream machine tools in the design and manufacture, relies on stable quality, reliable performance and humanized operation mode, which is favored by various users . In addition to having a stable market in China, the products are also exported to the United States, Germany, Turkey, Sweden, Japan, South Korea, Australia, Poland, Hesigo, Saudi Arabia. Iran, Brazil, South Africa, Colombia, Malaysia, Thailand, India, Vietnam ect.

Company History
1966 : Suzhou No.3 Optical InstrumentFactory
1968 : Started to research Molybdenum wirecut EDM machines with photoelectric tracing
1969 : Developed and produced GDX-1model
1982 : Developed and produced SSX-3 molybdenum wire cut EDM machine based onSingle-board machine controller
1984: DK7725D machine won the National Sliver Medal
1989 : The company entered into partnership with COSMOS international MachineryCo.,Ltd HongKong to set up a joint venturecalled Suzhou Sanguang Electric MachineryCo. Ltd
1994 : Sodick Co.,Ltd Japan entered intopartnership and the name of the companywas changed into Suzhou Sodick-SanguangElectric Machinery Co.,Ltd
1995 : Started to research and produced DK7632 Brass wire cut EDM machine
2008: Relocated at No.145 Songshan Road Suzhou, China, plant area 38060m²
2012 :The latest Brass wire cut machine, LA series were released
2014 : Became a public company , stockcode :430414
2023 : Suzhou Sanguang was shortlisted as anational "industrial mother-machine enterprise" and the fifth batch of "Little Giant" of the nationalgrade specialized and innovative enterprises
