New Design Plate Hammer Type Compound Stone Crusher Price

Product Description

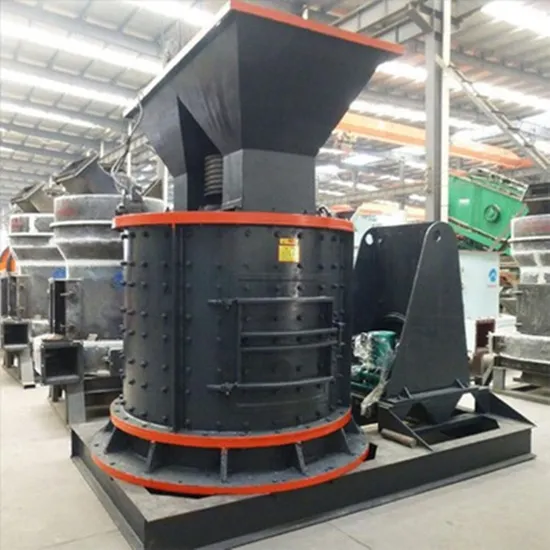

New Design Plate Hammer Type Compound Stone Crusher Price PFL vertical compound crusher, vertical combination crusher combining with the optimized fine crushing techniques at home and abroad, is used to crush various medium-hardness ores. It is mainly applied to crush the materials whose compression strength is less than 140MPa and humidity is less than 15%, such as limestone, clinker, coal, and other ores in building material industry, mining, metallurgy, and chemical engineering.
it is new type of compound crusher ,The hammers are different with common vertical compound crusher .
Vertical compound crusher Working principle:
The material in the upper part of the machine is perpendicular drop into the high speed rotating impeller, and under the high speed centrifugal force, it produces high speed impact and comminution with the other part of the material which distributes in the shape of umbrella around the impeller vertical composite crusher. The impeller and the housing will be crushed by swirl impact and friction between the impeller and the housing for many times, which will be discharged directly from the bottom, forming a closed circuit multiple cycles, and controlled by the screening equipment to achieve the required product size.
Vertical compound crusher Features:
1. High crushing rate; less noise, pollution, and abrasion; convenience in maintenance.
2. Having the fine crushing and coarse grinding functions.
3. Applied to crush medium-hardness and very hard materials.
4. Having obvious superiority in crushing the materials with high humidity.
Vertical compound crusher technical specifications :

Model	Rotor diameter (mm)	Cylinder height (mm)	Main shaft rotation speed (r/min)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Dimension (LxWxH mm)	Weight (t)
800	650	800	1350	50	0-5	5-15	30	2200*860*1980	2.3
1000	800	850	970	70	0-5	10-30	55	2700*1160*2000	4.5
1250	1000	850	740	100	0-5	20-60	75	2800*1400*2730	9.7
1500	1250	1000	650	100	0-5	30-80	110	3350*2100*2800	18.1
1750	1560	1410	600	100	0-5	40-100	132	3100*1900*2300	26.6

For Any Inquiry , Please contact us directly with Following information : 1. What kind of stone be crushed ? Limestone ? Granite ? Basalt ? or which kind ? 2. The general sizes of stones before crsuhing 3. The Sizes of Required final products ? For Mining ? For Construction ? 4. Capacity ? ___ T/H or ____ CBM/H
