Laminating Machine Roll to Roll Aluminum Foil 380V 50HZ Provided High-accuracy CN;JIA Dapeng Ordinary Product CE

Product Description

Product Description

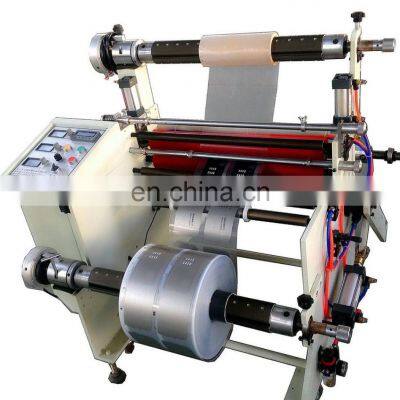

Roll To Roll Aluminum Foil Laminating Machine Functional Characteristics:1.Magnetic powder control the unwind and rewind tension.2.Frequency conversion is used for speed regulation of the main motor.3.The cylinder control the rubber roller up and down.4.Automatic meter counting,stable laminating,fast,high precision,low wastage,and easy operation.5.Optional:1.Photoelectric tracking system to keep the unwind material in line.2.Slitting function.3.Hot laminating function.4.can make as your requirements. Application:Used for laminating industrial tape,electronic material,protective film,copper foil,aluminum foil,OPP,PP,PE,PVC,paper,cloth.etc. Specification:ModelDP-420DP-650Max feeding width420mm 650mmUnwinding diameter400mm400mmRewinding diameter450mm450mmShaft diameter 3inch3inchPrecision±0.3mm±0.3mmTotal power1.5kw2.2kw Configuration:Unwinding shaft : 3 inch inflatable shaft 2 pcsRewinding shaft : 3 inch inflatable shaft 1 pcsMagnetic brakes : 2 set Magnetic clutch : 1 setLaminating motor: 1set Laminating roller : 2 (PU material)Air cylinder : 2 pcs
