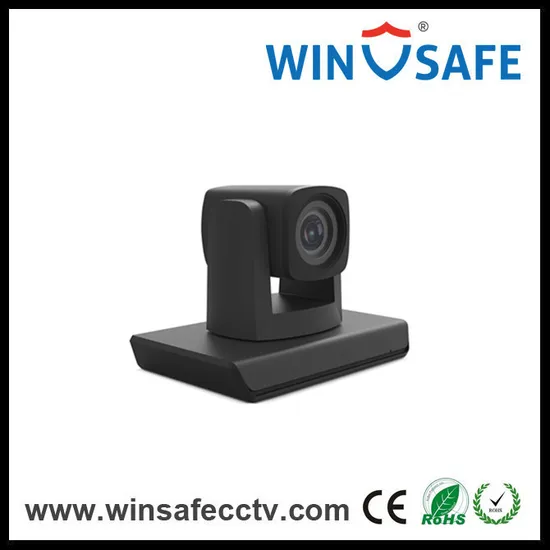

USB 2.0 PTZ Conference Video Camera
| US$100.00-200.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
AMC-M0301
Video Interface
USB 2.0
Control Protocol
Visca
UVC PTZ Control
Support
Dimension
163mm X 100mm X 144mm
Weight
0.6kg
Color
Black
Transport Package
Neutral Packing
Specification
CE, FCC, RoHS
Trademark
Winsafe
Origin
China
HS Code
8525801390
Production Capacity
500000PCS/Month
Product Description
USB 2.0 PTZ Conference Video Camera(1) Support standard UVC protocol, compatible with popular video conference software
(2) Support H.264, MJPEG video compression
(3) 2.19MP, 1/2.9" CMOS,3x optical zoom
(4) Up to 84°FOV, suitable for meeting rooms
(5) Support standard SONY VISCA control protocol
(6) With IR remote controller
(7) Precise positioning and stable operation
| Technical Specification | ||
| Model No. | AMC-M0301 | |
| Image Sensor | 1/2.9" Exmor CMOS, 2.19MP | |
| Resolution | Max 1080p/30fps | |
| Video Compression | YUY2 / H.264 / MJPEG | |
| Iris | F1.4 | |
| Zoom | 3X Optical Zoom | |
| Field of View | 84° - 28° | |
| Focus | Synchronous Focus | |
| Min.illumination | 0.5Lux(Color), 0.1Lux(B/W) | |
| Exposure | Auto / Manual | |
| White Balance | Auto / Manual | |
| BLC | Support | |
| PTZ | ||
| Pan Range | -90° - +90° | |
| Tilt Range | -30° - +90° | |
| Pan Speed | 50°/s | |
| Tilt Speed | 65°/s | |
| Preset Number | 32 | |
| IR Remote Control | Support | |
| Network | ||
| Video Interface | USB2.0 | |
| Audio Interface | Line IN | |
| Contorl Interface | USB2.0, RS232 | |
| UVC Protocol Version | UVC1.0 - UVC1.5 | |
| UVC PTZ Control | Support | |
| Control Protocol | VISCA | |
| Address | 1 - 7 | |
| General | ||
| Power Consumption | Below 5W | |
| Power Supply | DC12V | |
| Working Temp | 0°C - +40°C | |
| Storage Temp | -20°C - +60°C | |
| Dimension | 163mm x 100mm x 144mm | |
| Weight | 0.6kg | |
| Color | Black | |
