Factory Price 1L Kaishan Vertical Air Tank 1000L 10 Bar Air Tank Storage for Air Compressor

Product Description

Product Introduction
China Manufacturer Kalshan 1000L Alr Reservolr Tank for Screw Compressor
Kaishan Air Tank Functions
The air tank plays a very important role in compressed air system with multi purposes by value
of its design and the right air receive can also enhance the service life of compressor.
1).The air tank stores the pressurized compressed air.
2).It helps to maintain constant pressure at downstream.
3).It cools the compressed air.
4).The air tank helps to separate oil an moisture from the compressed air.
5).It allows the air compressor to have an optimum level of rest.
Product Parameters

Specification		Set Temperature ºC	Total Container height H	Container inner diameter DN	Air intake			Air outlet			Support		Safety valve interface	Drain valve interface
Volume	Pressure				Height H1	Flange d1	Thread d1	Height H2	Flange d2	Thread d2	Hole Diameter d	Distance D
0.3	0.8	150	1721	550	639	DN40	Rp1-1/2	1389	DN40	Rp1-1/2	20	400	Rp1	R1/2
	1.0		1721		639			1139
	1.3		1722		661			1389
	1.6		1722		661			1389
0.5	0.8	150	2177	600	655	DN40	Rp1-1/2	1655	DN40	Rp1-1/2	20	420	Rp1	R1/2
	1.0		2177		655			1655
	1.3		2178		656			1655
	1.6		2178		656			1655
0.6	0.8	150	1858	700	750	DN80	Rp1-1/2	1350	DN80	Rp1-1/2	25	490	Rp1	R1/2
	1.0		1858		750			1350
	1.3		1866		752			1352
	1.6		1866		752			1352
1.0	0.8	150	2400	800	731	DN80	Rp1-1/2	1920	DN80	Rp1-1/2	24	560	Rp11/2	R1/2
	1.0		2404		731			1920
	1.3		2432		733			1970
	1.6		2404		733			1970
1.5	0.8	150	2360	1000	763	DN80	Rp1-1/2	1949	DN80	Rp1-1/2	24	700	Rp11/2	R1/2
	1.0		2364		763			1951
	1.3		2368		763			1951
	1.6		2372		763			1951
2.0	0.8	150	2698	1100	806	DN80	Rp2	2140	DN80	Rp2	24	740	Rp11/2	R3/4
	1.0		2698		806			2140
	1.3		2698		806			2142
	1.6		2670		806			2142
2.5	0.8	150	2784	1200	851	DN100		2251	DN100		24	840	Rp11/2	R3/4
	1.0		2784		851			2251
	1.3		2788		854			2255
	1.6		2788		854			2255
3.0	0.8	150	2813	1300	856	DN100		2200	DN100		24	950	Rp11/2	R3/4
	1.0		2817		856			2200
	1.3		2841		858			2535
	1.6		2841		858			2535
4.0	0.8	150	3543	1300	930	DN100		2800	DN100		24	950	Rp11/2	R3/4
	1.0		3547		930			2800
	1.3		3547		934			2804
	1.6		3551		934			2804

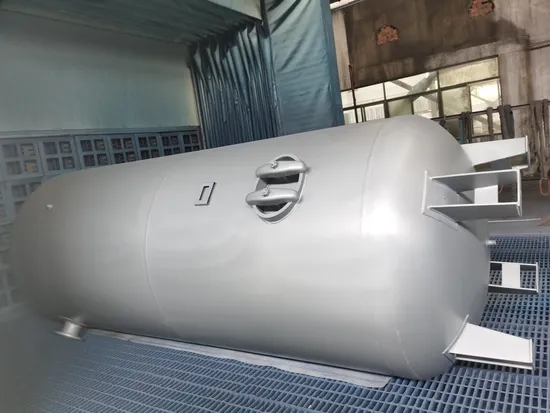

Detailed Photos
Company Information
Kaishan Group Co., Ltd. is a professional compressor company with a history of more than 60 years. In 2021, it achieved sales revenue of 2.6 billion yuan.
Kaishan's product distribution network covers the whole country, with more than 2,000 marketing outlets and high-quality sales services. Products are sold to more than 60 countries and regions in the world, including the United States, Germany, Japan, South Korea, and Russia.
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
