Cheap Amphibious Excavator Swamp Undercarriage Floating Pontoon Mini Amphibious Excavator with Pontoon Undercarriage Good Condition

Product Description

Product Description

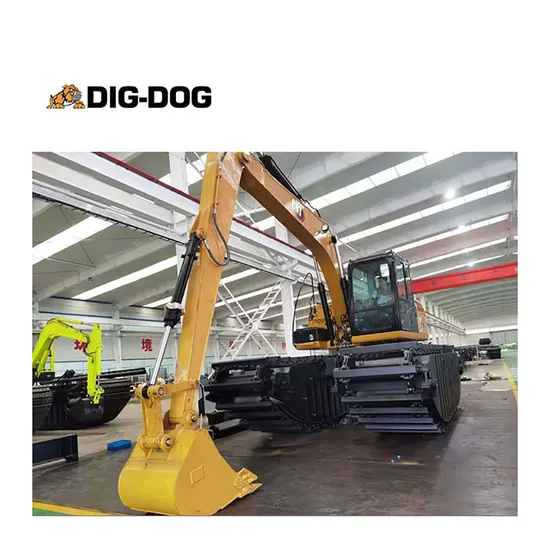

DIG-DOG Amphibious Pontoon Excavators
DIG-DOG amphibious excavators are widely used in river dredging, watershed management, wet embankment and other work, on the river, river, lake, sea, beach resources development and environmental remediation operations are of great help. The vehicle is equipped with imported engine and hydraulic system, and the operation efficiency and reliability are higher. Walking device with sealed box, 5 times the conventional excavator grounding area can be adapted to very soft ground, wetlands, swamps. Three rows of walking chains ensure safe and reliable walking in the water.
DIG-DOG's amphibious pontoon adopts a hollow structure to provide enough buoyancy, so that the whole machine floats on the water surface, ensuring that the whole machine can be transferred in deep waters, and can guarantee a maximum working water depth of 14 meters. Convenient. DIG-DOG's amphibious pontoon adopts a three-row chain structure to improve the safety of walking in water. The unique structure makes disassembly and assembly more convenient.
Our Advantages

Detailed Photos

Bolt Tension chain IMore convenient to tighten the butter Adjust the tension of the track.	Butter Tension Chain Cost-effective bolt tightening. Later maintenance costs are lower	Slewing platform Four high-pressure cut-off valves to prevent hydraulic oil leakage during disassembly

Floating tank - semi-automatic telescopic Use the traveling oil circuit to control the telescoping function	Floating tank - fully automatic telescopic In-cab controls are done.

Semi-automatic and fully automatic options for positioning piles of the pontoon. There are inspection holes inside the pontoon and equipped with travel motors. Engine
An lmported lsuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
Product Parameters

Description	DIG-DOG Amphibious Potoons
	AP-50		AP-80		AP-140		AP-180		AP-200		AP-250		AP-300		AP-350		AP-450
Upper Tons	3-5t		6-8t		11-15t		16-19t		20-24t		25-27t		27-30t		30-40t		40-50t
Pontoon Grounded Length	1200		2000		3500		4500		5000		6000		6500		7000		7000
Undercarriage Length	5200		5700		6200		8500		9500		10500		10500		11500		13500
Overall Length	6100		7260		8070		10290		11460		13300		13610		14480		14480
	7300		9550		11300		12950		14450		14450		15450		15950		15950
	8500		10550		12300		13950		15750		15750		16750		17100		17100
Overall Height	2600		3700		3770		2870		3950		3980		4040		4140		4800
Counterweight Ground Clearance	1510		1810		2010		2010		2010		2010		2010		2200		2540
Spuds Height	6000		6000		6000		8000		8000		10000		10000		12000		12000
Overall Width	4700		5500		6160		6360		6800		6800		8000		8000		8000
Pontoon Height	1340		1640		1840		1840		1840		1840		1840		2040		2340
Track Gauge	2700		3500		3660		3660		3700		3700		4700		4700		4700
Overall Width	3700		4500		5160		5160		5200		5200		6400		6400		6400
Pontoon Width	1000		1300		1500		1500		1500		1500		2000		2000		2000
Spuds Cross Range	3500		4000		4500		5000		5600		5600		5600		6000		6000
Spuds Width	4100		4900		5560		5560		5600		5600		6800		7000		7000

Quality Control

We only use genuine seanless hydraulic lines and are subjected to pressure testing prior to installation	All steel material is processed by CNC machines to ensure a high level of precision and consistency
Hydraulic piston motor from Doosanor Rexroth	Premium grade flex able hose
Well-experienced and qualified Welder to ensure the welding quality	Sandblast process creates a unique steel surface texture that provides excellent cohesion for paint coating

Customized for
About Us
DIG-DOG, Dig the world!
DIG-DOG is a branch of BONOVO Group. We have an independent brand and are dedicated to excavation projects in the construction machinery market.
DIG-DOG can provide excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts for the construction machinery industry, so that
you can buy not only a single machine, but also full range of multi-functional and customized attachments to deal with different work requirements.
DIG-DOG machinery products exported more than 80 countries, and DIG-DOG have our own brand agents in North America, South America, Europe and many other regions,and we welcome more friends to become our brand agents. We can provide customers with more convenient and comprehensive after-sales service. Choose DIG-DOG to make your excavation work more easier and more convenient, and choose DIG-DOG to fully realize the possibility of configuring more accessories for the machine.

FAQ
Does it float?
Yes. However, working in open water requires additional pontoons and anchoring legs that are designed to give the extra stability necessary for safe operation on open water.
Is it safe to operate an amphibious excavator?Stability of the pontoons is the best on the market, hands down. We do the design calculations with a "safety first" frame of mind and our instructions explain how to operate the machinery in a safe manner. Each pontoon is divided into several water-tight compartments to minimize any risk in case of accident.
What are the advantages of your brand?We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every DIG-DOG product is armed and durable with a 12-month warranty. We use high quality materials & parts sourced from the very best in China.Our design team works closely with customers for any customized orders.
What logistics way for product delivery?1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
Which payment terms do you accept?We can work on T/T bank transfer and 100% irrevocable L/C. Please contact our customer representatives directly for a specific term.
